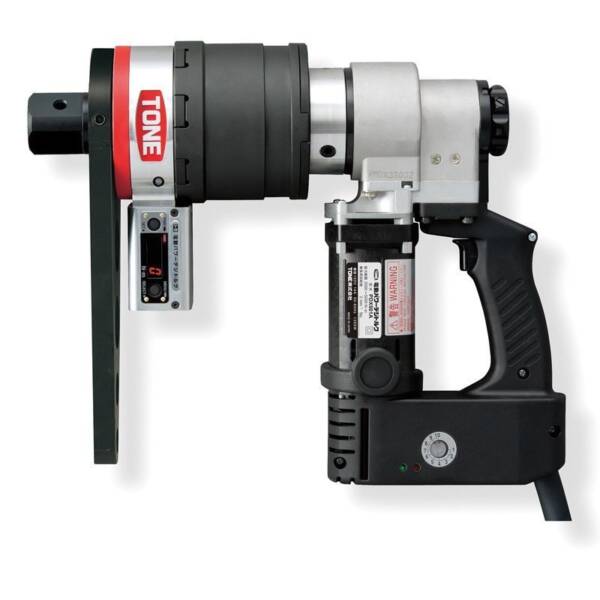

TONE PDX-501F Torque Wrench w/ Digital Readout
The PDX-501F electric torque control wrench combines adjustable torque control with an easy-to-read digital display. A MicroSD card stores the date, time, as well as clockwise and counterclockwise torque measurement for each bolt tightened.
| Fully Tensioned Structural Bolts:
A325 – 1-1/4″, 1-3/8″, 1-1/2″ A325M – M30, M33, M36 A490 – 1-1/4″, 1-3/8″, 1-1/2″ A490M – M30, M33, M36 |
Adjustable Torque Range:
1,500-3,700 ft-lb. (2,000-5,000 N-m) |
Specifications
| Model | TONE PDX-501F |
| Voltage | 115 V |
| Max. Current | 12 A |
| Max. Power Consumption | 1,350 W |
| Adjustable Torque Range | 1,500~3,700 ft-lb. (2,000~5,000 N-m) |
| No-load Speed | 2 rpm |
| Square Drive Size | 1 1/2″ drive |
| Tool Weight | 29.7 lb. (13.5 kg) |
| Repeated Accuracy | ±5% |
| Battery Life | Approx. 170 hours (20,000 readings) |
- LED Display
- Torque Control Dial
- MicroSD Memory Card
- Clockwise & Counterclockwise Torque Measurements
Available Accessories
- 1.5″ (38.1 mm) Square-Drive Sockets
- Reaction Bars- Straight & L-type
- Lifting Device
Documents
Helpful resources:
Dimensioned Drawing
Instructional Manual
Parts Diagram
Torque Catalog
