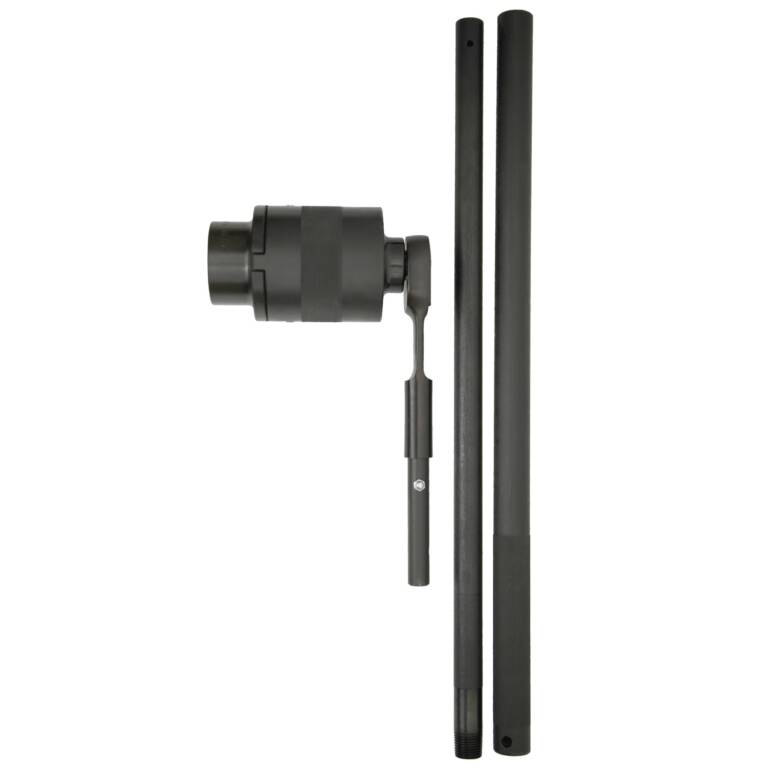

TONE S-24HA TC Bolt Hand Wrench
The S-24HA manual shear wrench is compact and practical for tight spaces or when electricity isn’t available. This manual shear wrench is compatible with 3/4″, 7/8″, and 1″ diameter TC bolts.
| Fully Tensioned Structural Bolts: |
| A325- 3/4″, 7/8″, 1″
A325M- M20, M22, M24 A490- 3/4″, 7/8″, 1″ A490M- M20, M22, M24 |
Want to talk to a specialist now?
(888) 838 6500
Business Hours: 8am - 5pm Est
Specifications
| Model | TONE S-24HA |
| Weight | 13.9 lb. (6.3 kg) |
| Height | 39 – 3/8″ (1,000 mm) |
| Length | 5 – 1/16″ (129 mm) |
| Width | 3 – 7/16″ (88 mm) |
| Shipping Weight | 25 lb. (11.4 kg) |
Available Accessories
- Sockets
- Pelican 1555 Case with custom foam inserts
Documents
Helpful resources:
Dimensioned Drawing
Instruction Manual
Parts Diagram
Shear Catalog
Testimonials
Kind words from our customers:
-
“It was a great pleasure working with GWY. They go above and beyond to help with what we needed. Don was very quick on getting what we needed out to us to complete the job. Very proud to be a GWY customer.”
-
“GWY’s parts inventory and response is top notch. You can expect prompt, respectful, knowledgeable answers to questions and full cooperation when you need it. Truly a mark of a reputable company with a good team.”
FAQs
Does my shear wrench need to be calibrated?
No, shear wrenches do not have any settings for calibration. TC bolts are calibrated and come with mill certificates to prove calibration.
Is there a specific socket for bolts that have been galvanized or have a coating?
We do offer inner sockets for shear wrenches that are slightly oversized to accommodate the extra layer upon request.
Does the tool come with anything?
All of our tools come with a case. Our Turn-of-Nut & Shear Wrenches come with the one size socket and a metal case. The cordless tools come with one or two batteries, a charger, and a case.
Are the same size sockets interchangeable between different tools?
Typically, the answer is no but there are exceptions. The only interchangeable sockets for current model shear wrenches are between the GV-301ZA and the GVC-301EZ. The Older models like the S-60EZA share sockets with their newer models like the S-61EZ. The same is true for the S-90EZ and GS-91EZ as well as the S-110EZ and the GS-111EZ.
There are a few TN tools that share sockets with each other such as the TN-20EZ and the TN-22EZ as well as the TN-30EZ and the TN-33EZ.
The GNR series can share sockets with some of the TN tools. The GNR-31E, 51E, & 81E can use the TN-20EZ/22EZ bar sockets instead of impact sockets. The GNR-121E can use the bar sockets of the TN-24EZA and the GNR-211E can use the bar sockets of the TN-30EZ/33EZ. The GNR’s can also share impact sockets that have their correct drive size.
