GHC-241EZ

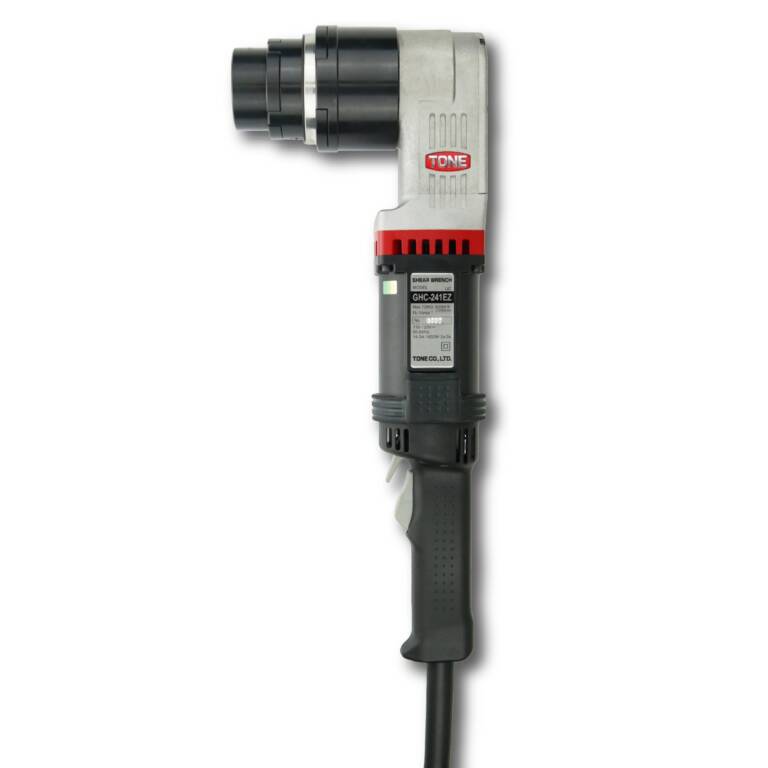

TONE GHC-241EZ Minimal Clearance Shear Wrench

The GHC-241EZ is our most popular for minimal clearance wrench compatible with 3/4″, 7/8″, and 1″ diameter bolts. This wrench shears off the spline of a TC bolt when it reaches the correct tension. The ejector lever is then pulled to eject the spline for easy removal.

Fully Tensioned Structural Bolts: Maximum Torque:
A325- 3/4″, 7/8″, 1″

A325M- M20, M22, M24

A490- 3/4″, 7/8″, 1″

A490M- M20, M22, M24

 920 ft-lb. (1,250 N-m)
Talk to a Specialist
Want to talk to a specialist now?
(888) 838 6500
Business Hours: 8am - 5pm Est

Specifications

Model TONE GHC-241EZ TONE GHC-242EZ
Voltage 110-120 V 220-230 V
Max. Current 14.5 A 7.5 A
Rated Power 1,650 W 1,650 W
Frequency 50-60 Hz 50-60 Hz
Max. Torque 920 ft–lb. 1,250 N–m
No-load Speed 11 rpm 11 rpm
Weight 13.2 lb. 6.0 kg



Available Accessories



Documents

Helpful resources:

Dimensioned Drawings

Instructional Manual

Parts Diagram

Shear Catalog

Trusted by:

Testimonials

Kind words from our customers:

  • “It was a great pleasure working with GWY. They go above and beyond to help with what we needed. Don was very quick on getting what we needed out to us to complete the job. Very proud to be a GWY customer.”

    Bobby
    HB Metal Builders

  • “I have enjoyed working with GWY. Their people know their product well. Their prompt response and delivery of the product is as good as any service Ogeechee Steel has ever had the pleasure of doing business with.”

    David
    Ogeechee Steel

FAQs

Does my shear wrench need to be calibrated?

No, shear wrenches do not have any settings for calibration. TC bolts are calibrated and come with mill certificates to prove calibration.

Are the same size sockets interchangeable between different tools?

Typically, the answer is no but there are exceptions.  The only interchangeable sockets for current model shear wrenches are between the GV-301ZA and the GVC-301EZ. The Older models like the S-60EZA share sockets with their newer models like the S-61EZ. The same is true for the S-90EZ and GS-91EZ as well as the S-110EZ and the GS-111EZ. There are a few TN tools that share sockets with each other such as the TN-20EZ and the TN-22EZ as well as the TN-30EZ and the TN-33EZ. The GNR series can share sockets with some of the TN tools. The GNR-31E, 51E, & 81E can use the TN-20EZ/22EZ bar sockets instead of impact sockets. The GNR-121E can use the bar sockets of the TN-24EZA and the GNR-211E can use the bar sockets of the TN-30EZ/33EZ. The GNR’s can also share impact sockets that have their correct drive size.

Does the tool come with anything?

All of our tools come with a case.  Our Turn-of-Nut & Shear Wrenches come with the one size socket and a metal case.  The cordless tools come with one or two batteries, a charger, and a case.

Is there a specific socket for bolts that have been galvanized or have a coating?

We do offer inner sockets for shear wrenches that are slightly oversized to accommodate the extra layer upon request.
