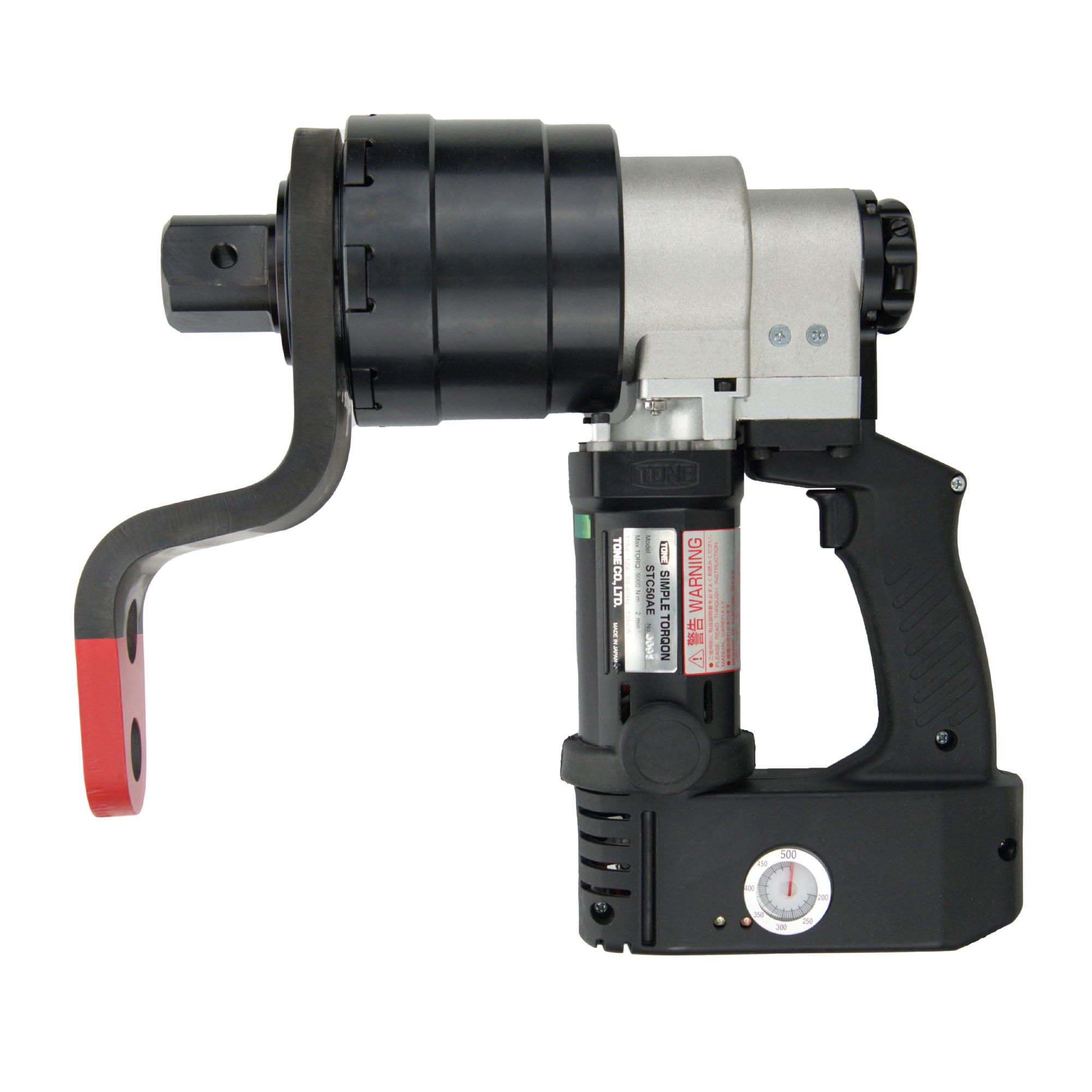

TONE STC-50AE Electric Torque Wrench
The STC-50AE square drive nut runner is capable of tackling your most demanding jobs. This heavy-duty wrench features clockwise and counterclockwise torque control, torque setting dial, and LED indicator lights.
| Fully Tensioned Structural Bolts:
A325 – 1-1/4″, 1-3/8″, 1-1/2″ A325M – M30, M33, M36 A490 – 1-1/4″, 1-3/8″, 1-1/2″ A490M – M30, M33, M36 |
Adjustable Torque Range:
1,500–3,700 ft-lb. (2,000–5,000 N-m)
|
Specifications
| Model | TONE STC-50AE | TONE STC-50TE |
| Voltage | 110-120 V | 220-230 V |
| Max. Current | 12.0 A | 6.0 A |
| Max. Consumption | 1,350 W | 1,350 W |
| Frequency | 50-60 Hz | 50-60 Hz |
| Adjustable Torque Range | 1,500–3,700 ft-lb. | 2,000–5,000 N-m |
| No-load Speed | 2 rpm | 2 rpm |
| Square Drive Size | 1-1/2″ drive | 1-1/2″ drive |
| Weight | 27.5 lb. | 12.5 kg |
| Repeated Accuracy | ± 5% | ± 5% |
Available Accessories
- 1-1/2” (38.1mm) Square Drive Sockets
- Straight-Type Reaction Bar
- L-Type Reaction Bar
- Lifting Device
Documents
Helpful resources:
Dimensioned Drawing
Instructional Manual
Parts Diagram
Torque Catalog
