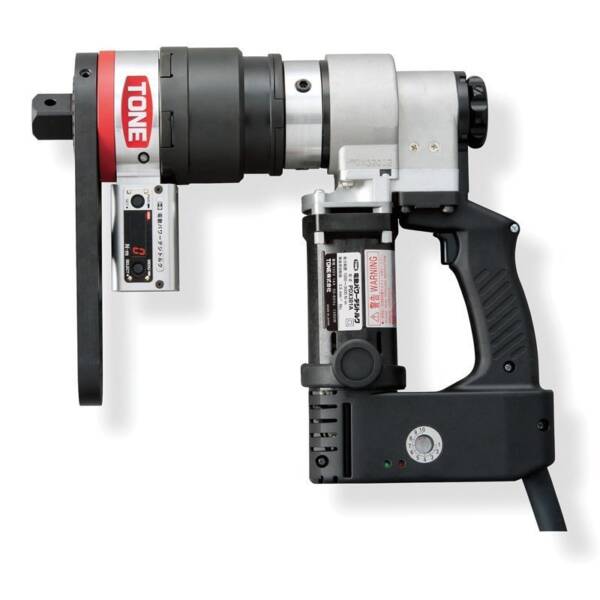

TONE PDX-301F Torque Wrench w/ Digital Readout
The PDX-301F electric torque control wrench combines adjustable torque control with an easy-to-read digital display. A MicroSD card stores the date, time, as well as clockwise and counterclockwise torque measurements for each bolt tightened.
| Fully Tensioned Structural Bolts:
A325 – 1”, 1-1/8″, 1-1/4″ A325M – M24, M27, M30 A490 – 1″, 1-1/8″, 1-1/4″ A490M – M24, M27, M30 |
Adjustable Torque Range:
750-2,200 ft-lb. (1,000-3,000 Nm) |
Specifications
| Model | TONE PDX-301F |
| Voltage | 115 V |
| Maximum Current | 12 A |
| Maximum Power Consumption | 1,350 W |
| Adjustable Torque Range | 750~2,200 ft-lb. (1,000~3,000 N-m) |
| No-load Speed | 2 rpm |
| Square Drive Size | 1″ drive |
| Tool Weight | 23.1 lb. (10.5 kg) |
| Repeated Accuracy | ±5% |
| Battery Life | Approx. 170 hours (20,000 readings) |
- LED Display
- Torque Control Dial
- MicroSD Memory Card
- Clockwise & Counterclockwise Torque Measurements
Available Accessories
- 1″ (25.4mm) Square-Drive Sockets
- Reaction Bars- Straight & L-type
- Lifting Device
Documents
Helpful resources:
Dimensioned Drawing
Instructional Manual
Parts Diagram
Torque Catalog
