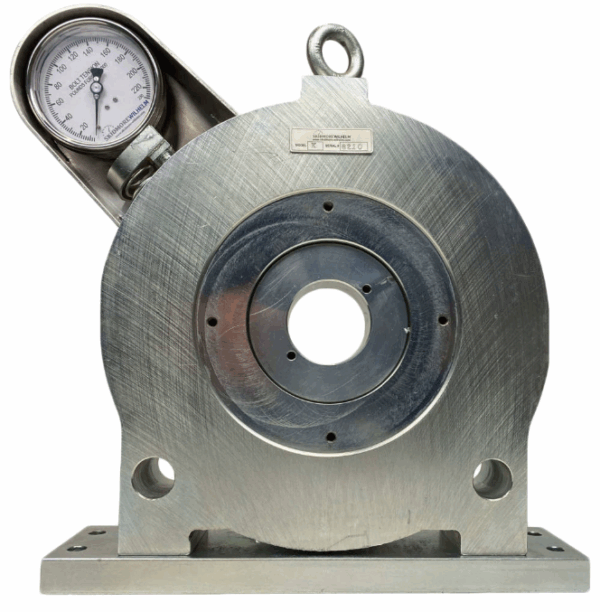

Skidmore Model K
The Skidmore Model K is our largest bolt tension calibrator reaching 225,000 lbs. of bolt tension and is upgradable to 450,000 lb.
The Model K Bolt Tension Calibrator verifies:
- Fasteners meet minimum bolt tension specifications
- Impact wrenches are properly calibrated to achieve proper tension in the bolted joint
- Tension-control fasteners shear off at the correct tension
- Direct Tension Indicating (DTI) washers are indicating at proper tension
- Bolting crew understands how to achieve proper tension in all types of fasteners
- You have the right installation tools and equipment
Capacity: 225,000 lbs. of Bolt Tension (can be upgraded to 450,000 lb.)
Specifications
| Skidmore K | Minimum Bolt Length |
|---|---|
| Bolt Diameter | Regular Bolt Length |
| 1 – 1/4″ | 5 – 1/2″ |
| 1 – 3/8″ | 6″ |
| 1 – 1/2″ | 6 – 1/2″ |
| 1 – 3/4″ | 8″ |
| 2″ | 8″ |
| 2 – 1/4″ | 9″ |
| 2 – 1/2″ | 9 – 1/4″ |
The Model K can be used with our adapter kits to test the following bolts sizes:
| Imperial | Metric |
| 1 – 1/4″ | M32 |
| 1 – 3/8″ | M33 |
| 1 – 1/2″ | M36 |
| 1 – 3/4″ | M39 |
| 2″ | M42 |
| 2 – 1/4″ | M45 |
| 2 – 1/2″ | M52 |
| M56 |
| M64 |
