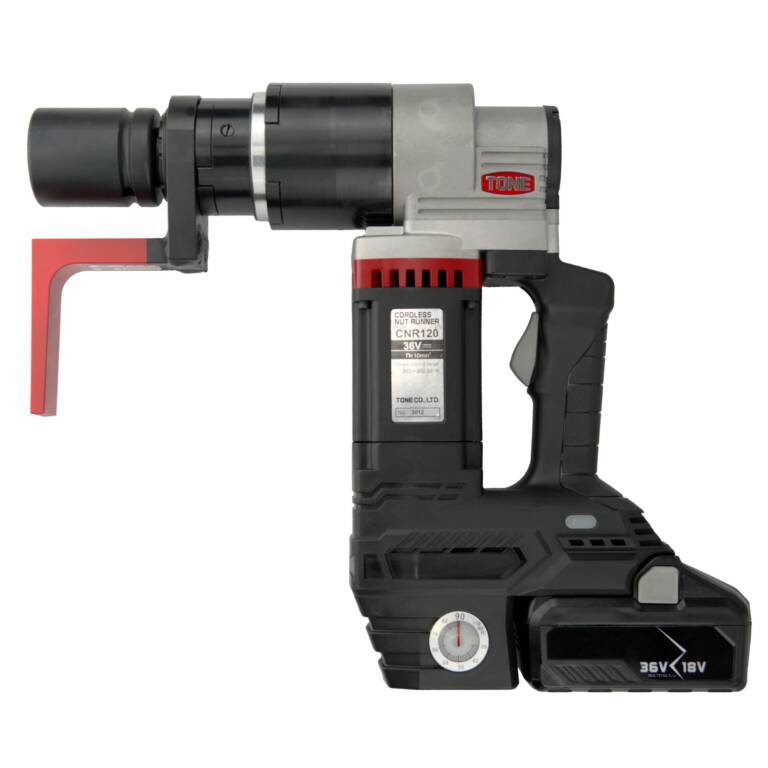

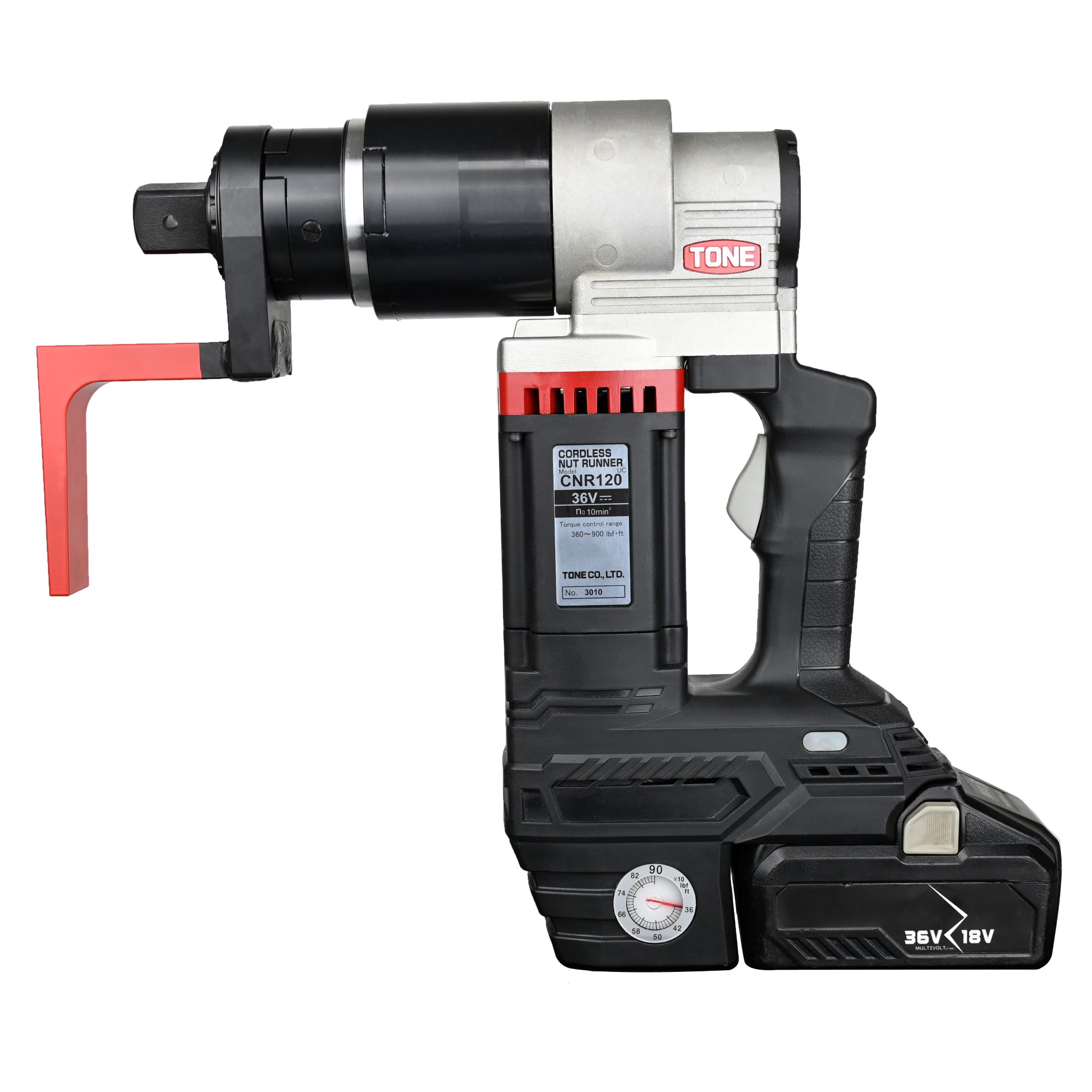

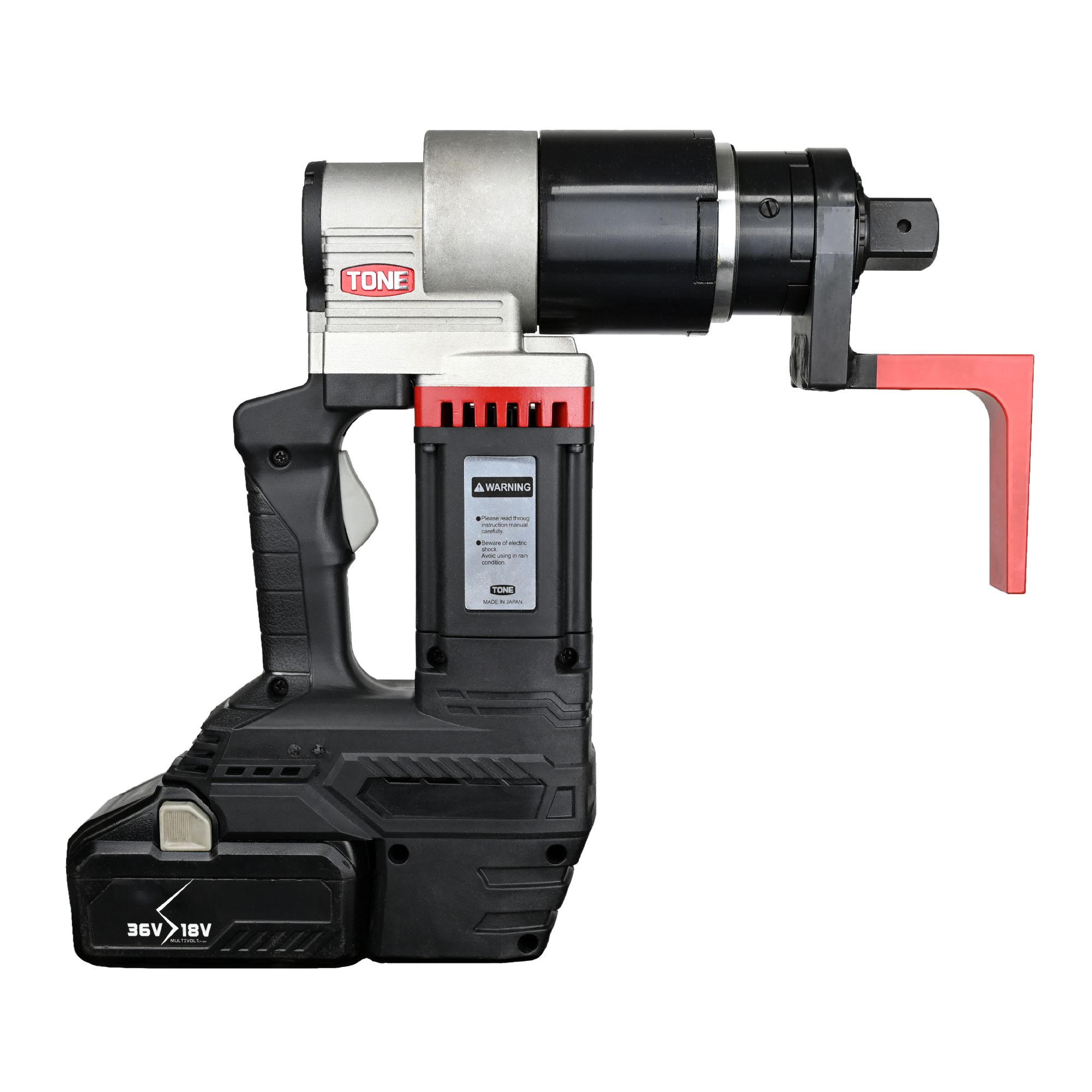

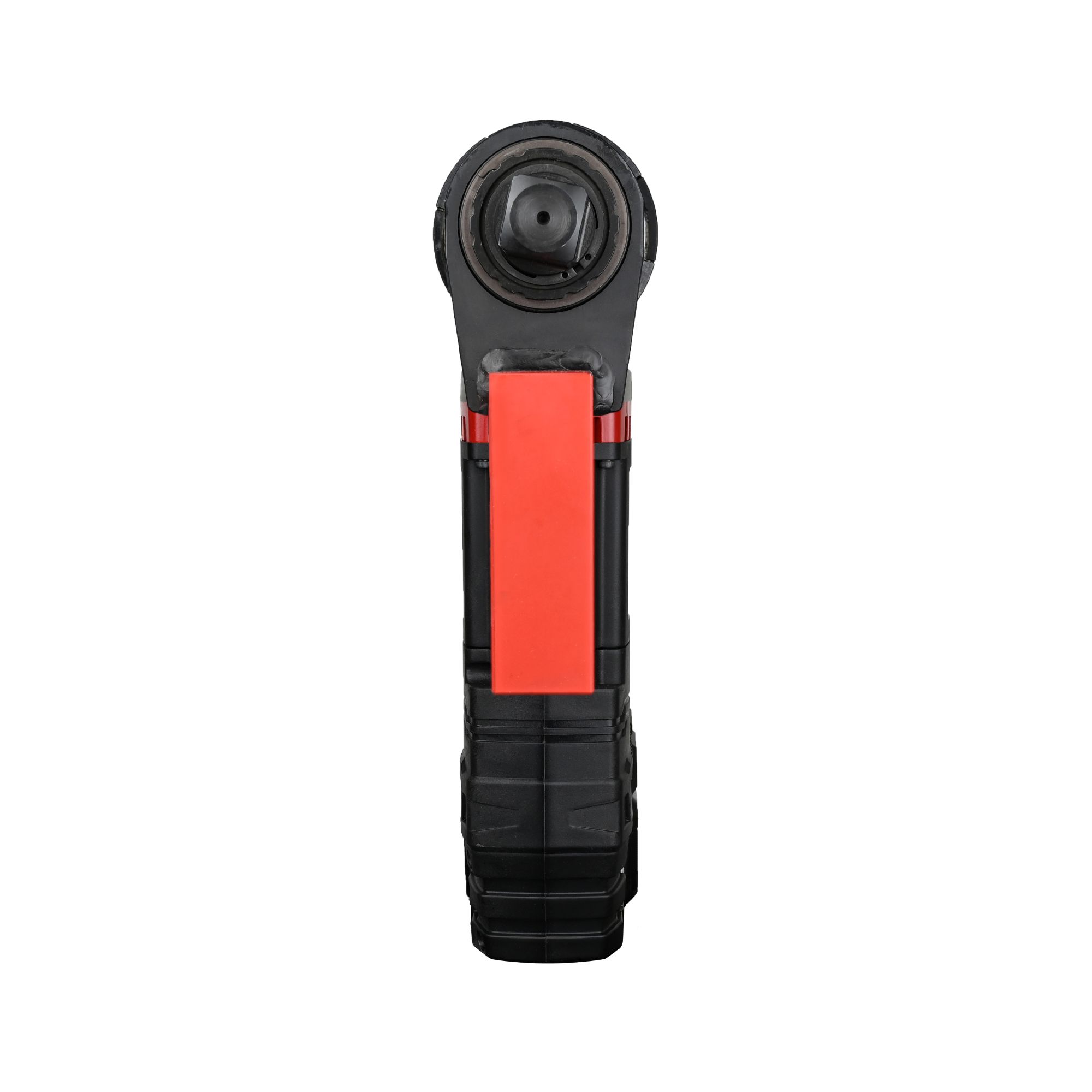

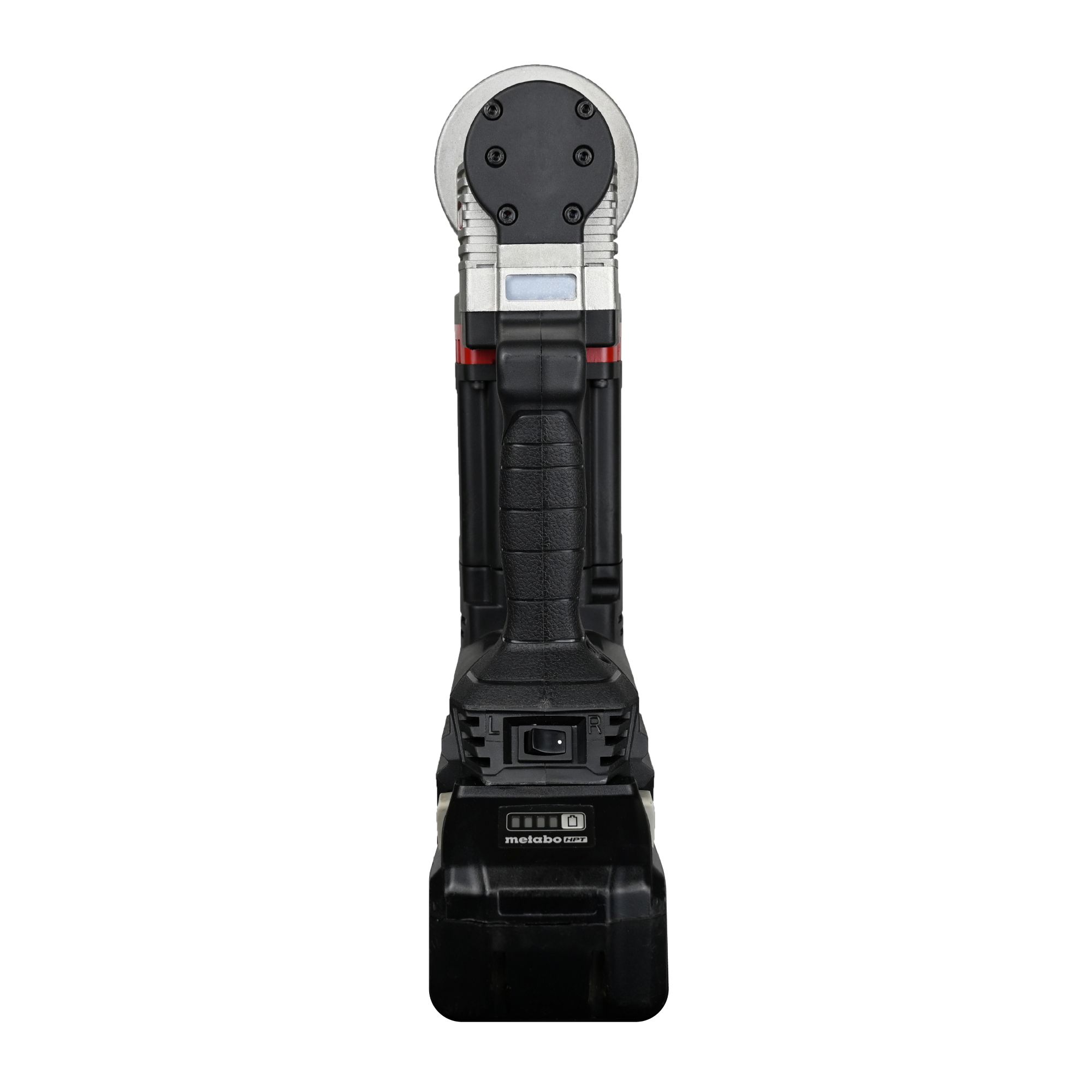

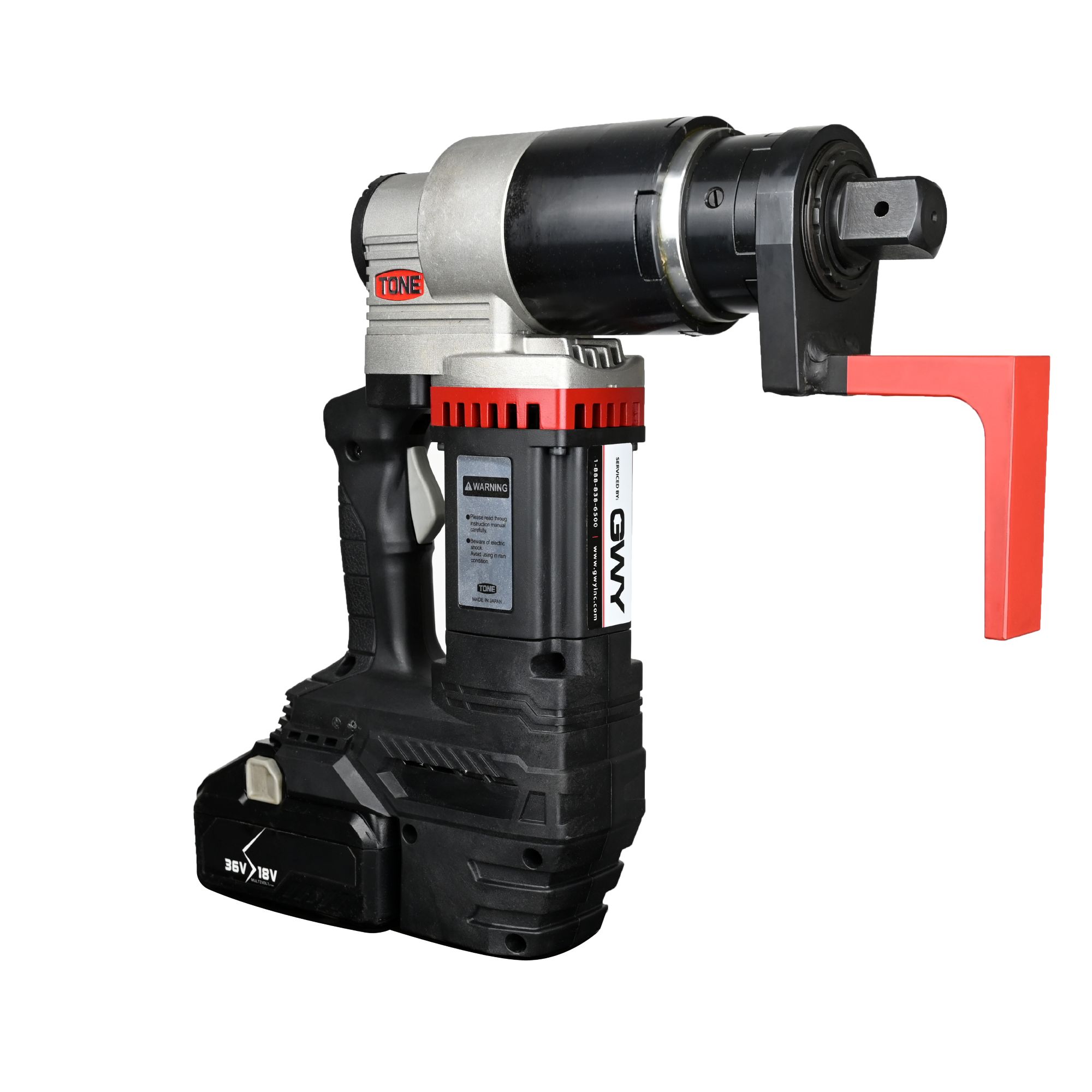

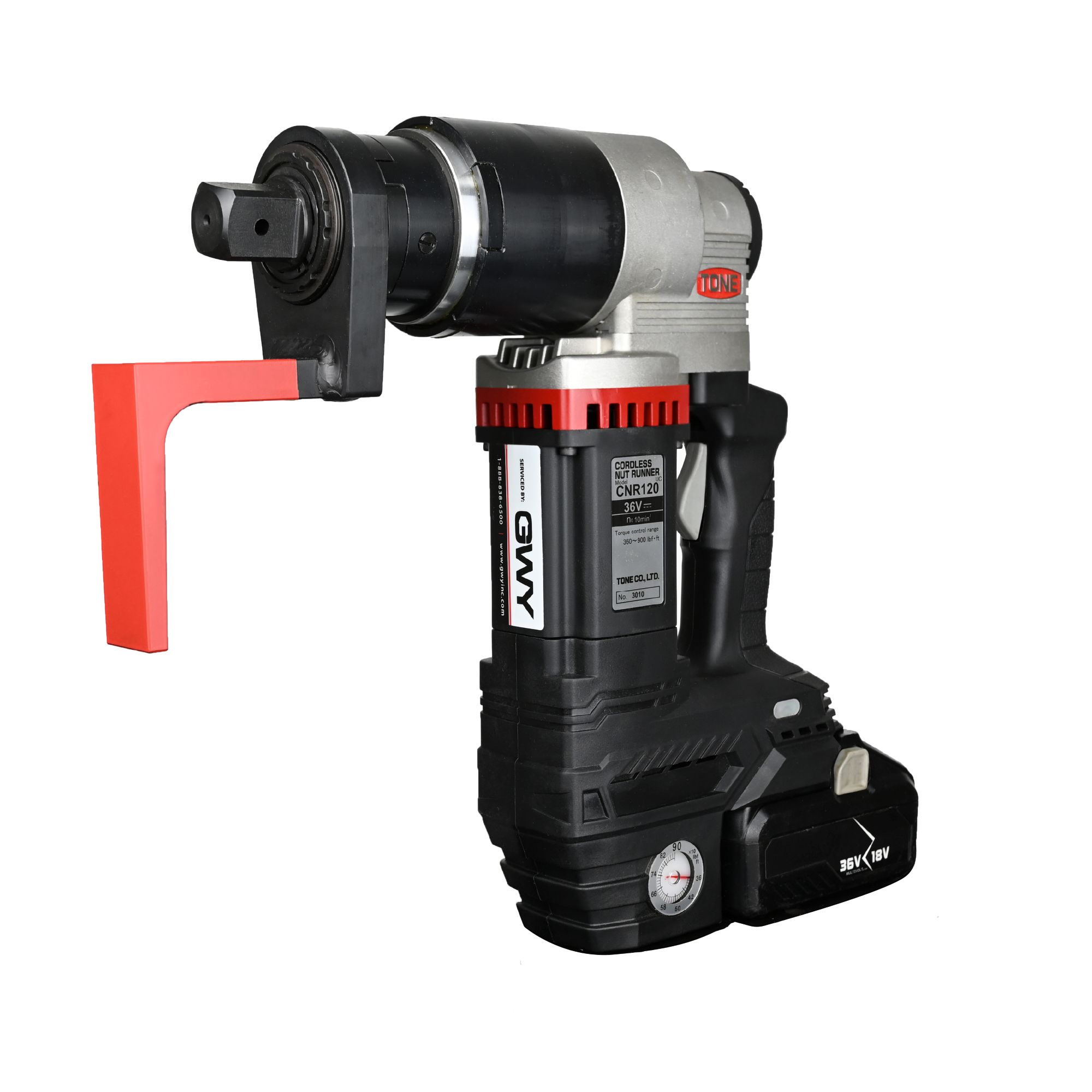

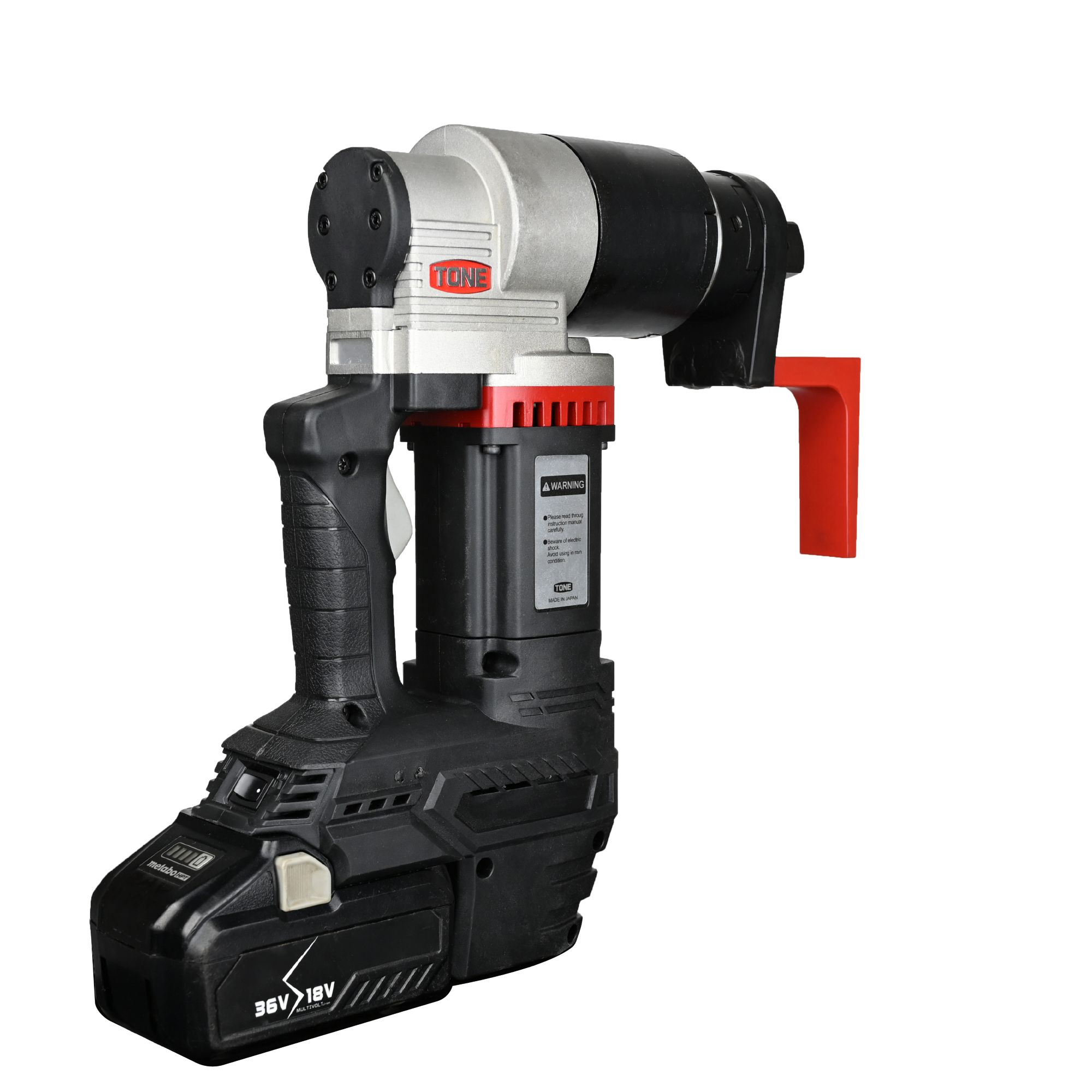

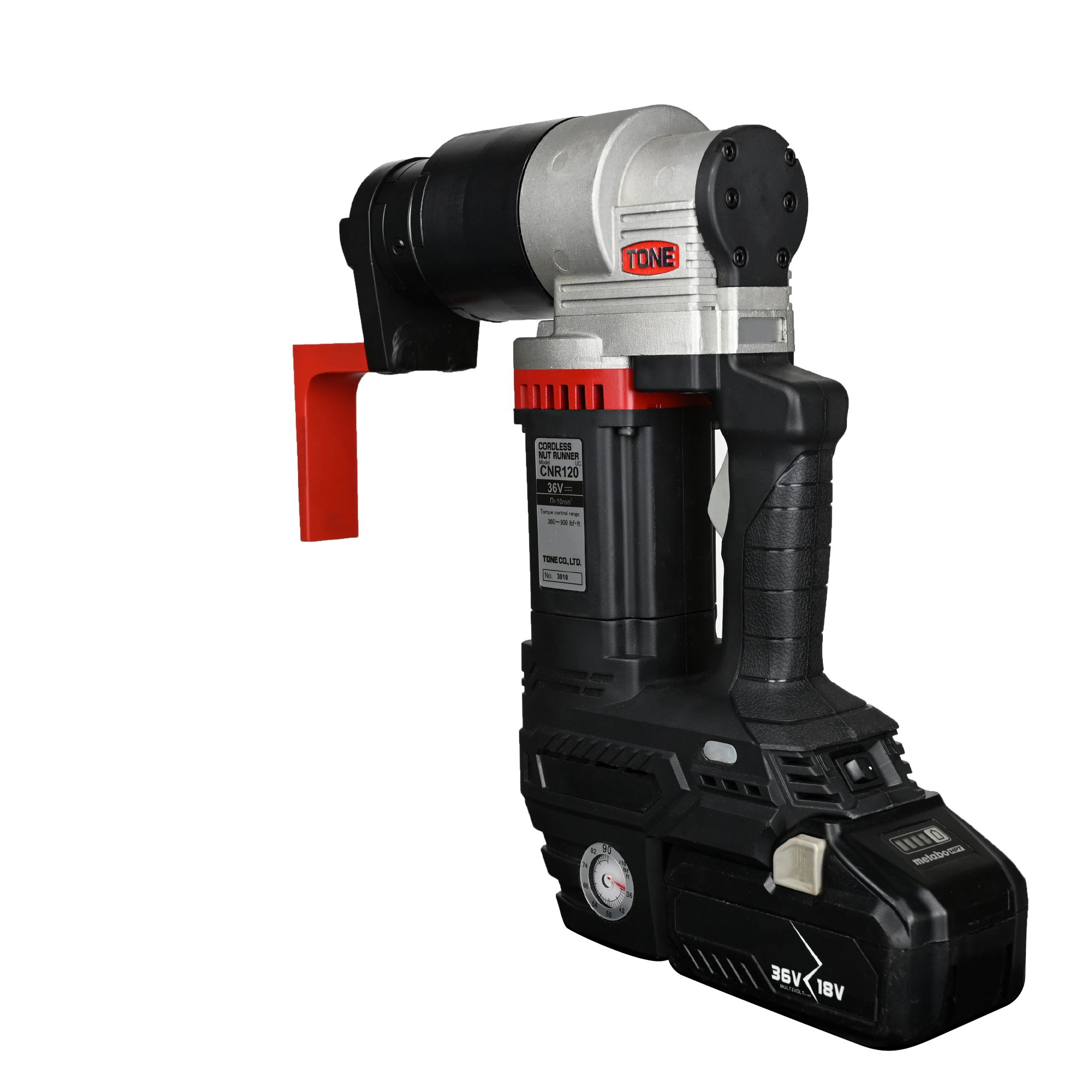

TONE CNR-120 Cordless Torque Wrench
The CNR-120 cordless nut runner provides enhanced user experience and is capable of tightening approximately 140 bolts on a full charge. This electric square drive wrench features clockwise and counterclockwise torque measurements, a torque setting dial, and LED indicator lights.
| Fully Tensioned Structural Bolts:
A325 – 3/4″, 7/8″, 1″ A325M – M20, M22, M24 A490 – 3/4″, 7/8″ A490M – M20, M22 |
Adjustable Torque Range:
360-900 ft-lb. / 500-1,200 N-m
|
Specifications
| Model | TONE CNR-120 | TONE CNB-120 |
| Controllable Torque Range | 360~900 ft-lb. | 500~1,200 N-m |
| No-Load Speed | 10 rpm | 10 rpm |
| Square Drive Size | 1″ | 1″ |
| Storage Battery | DC36 V | DC36 V |
| Approx. # of Bolts Per Full Charge | 140 | 140 |
| Weight | 16.3 lb. | 7.4 kg |
| Repeated Accuracy | ±5% | ±5% |
- DC Brushless Motor
- Remaining Storage Capacity Display
- Torque Control Setting Dial
- Clockwise & Counterclockwise Directions
Kit Includes
- CNR-120 Cordless Nut Runner
- Two (2) 36V/18V Lithium Ion 4.0Ah Batteries
- Battery Charger
- Carrying Case
Available Accessories
- X-Holder Extension 100mm (3-7/8″)
- Digital Torque Meter DTM 12
- 1” (25.4 mm) Square-Drive Sockets
- Bar Sockets
Documents
Helpful resources:
Dimensioned Drawings
Instructional Manual
Torque Catalog
