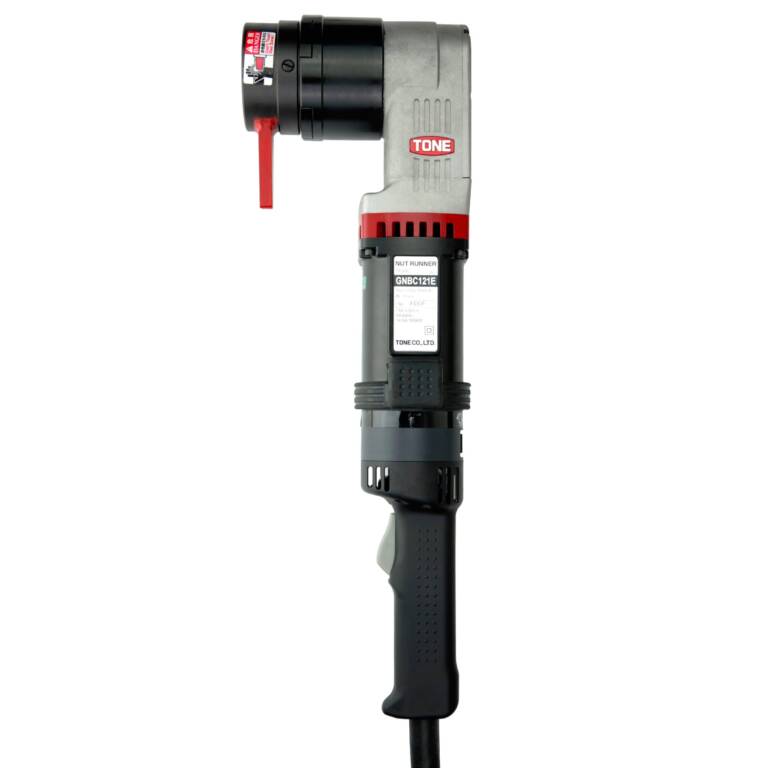

TONE GNBC-121E Minimal Clearance Torque Wrench
The GNBC-121E minimal clearance torque wrench features an adjustable torque range, torque setting dial, and LED indicator lights.
| Fully Tensioned Structural Bolts:
A325 – 3/4″, 7/8″, 1″ A325M – M20, M22, M24 A490 – 3/4″, 7/8″ A490M – M20, M22 |
Adjustable Torque Range:
360–900 ft-lb. / 490–1,220 N-m |
Specifications
| Model | TONE GNBC-121E | TONE GNBC-122E |
| Voltage | 110-120 V | 220-230 V |
| Frequency | 50-60Hz | 50-60Hz |
| Max. Current | 14.5 A | 7.5 A |
| Max. Power Consumption | 1,650 W | 1,650 W |
| Adjustable Torque Range | 370-900 ft-lb. | 500-1,220 N-m |
| No-load Speed | 11 rpm | 11 rpm |
| Weight | 12.8 lb. | 5.8 kg |
| Repeated Accuracy | ±5% | ±5% |
Available Accessories
- Bar Sockets
Documents
Helpful resources:
Dimensioned Drawing
Instructional Manual
Parts Diagram
Torque Catalog
