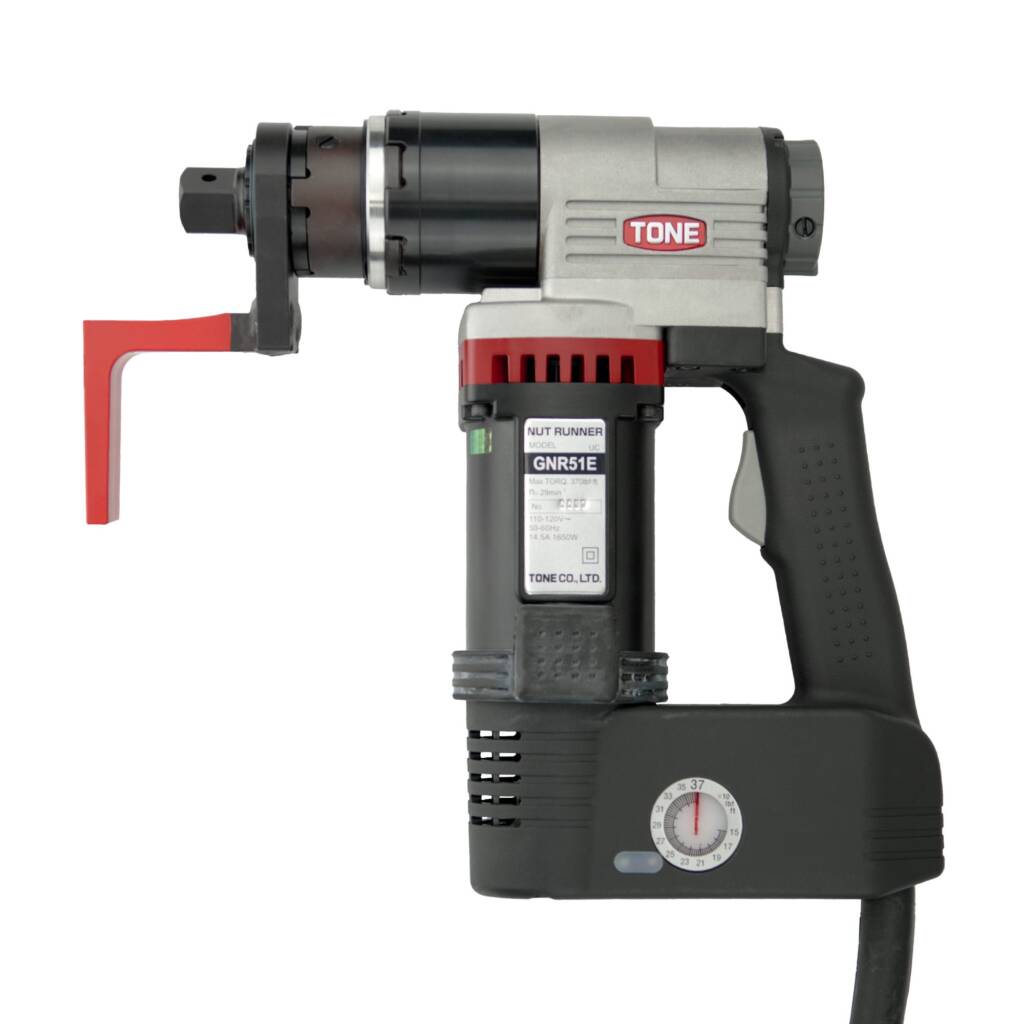

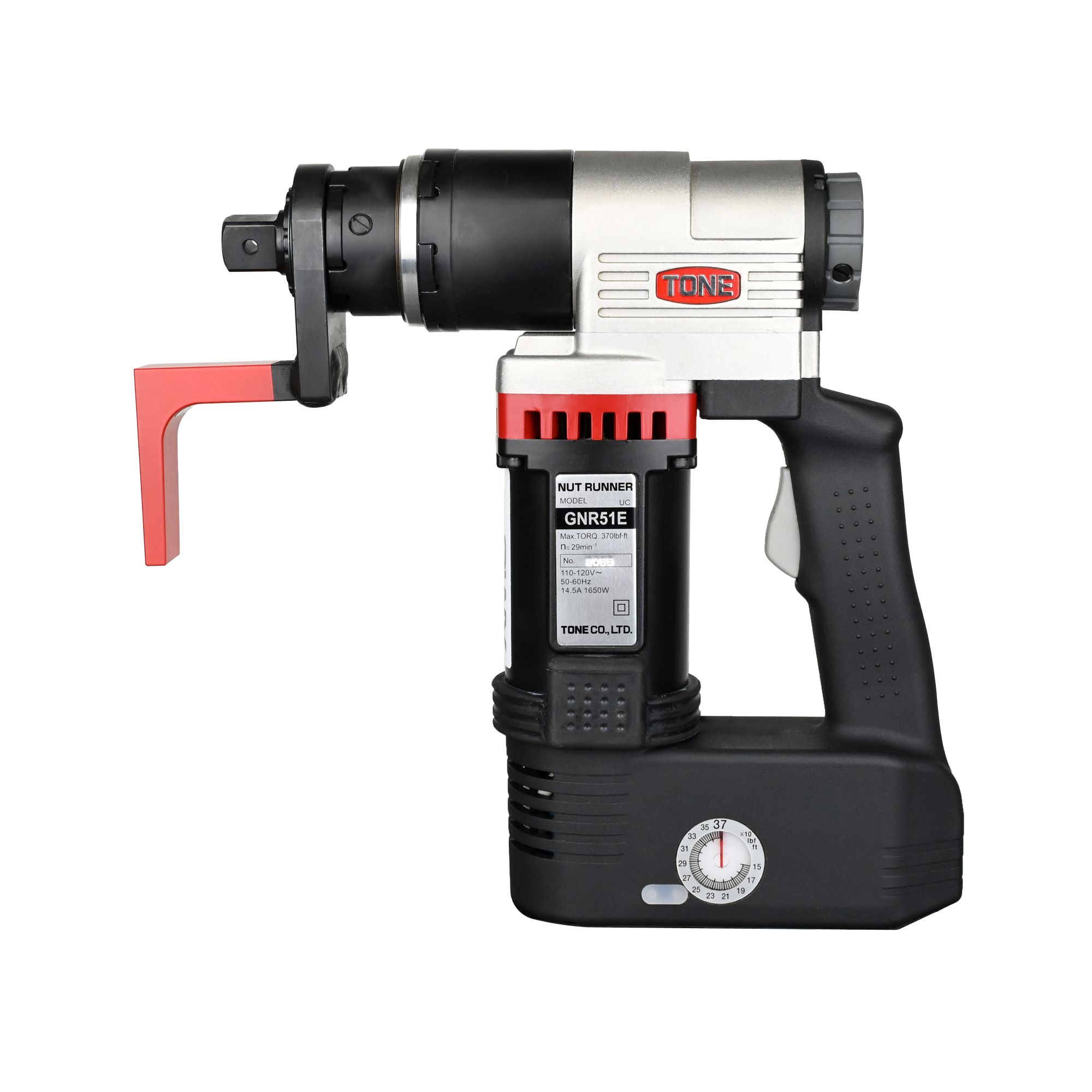

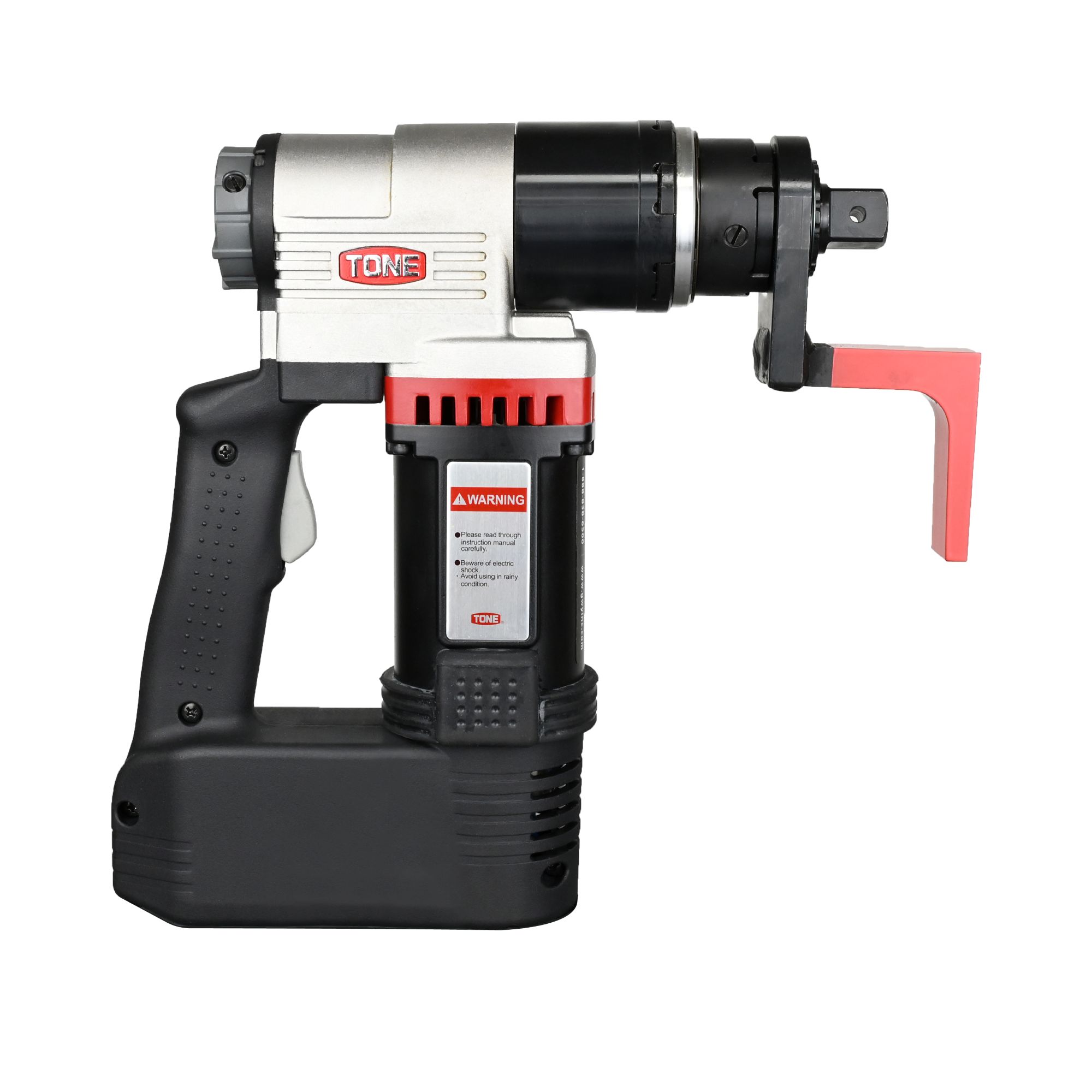

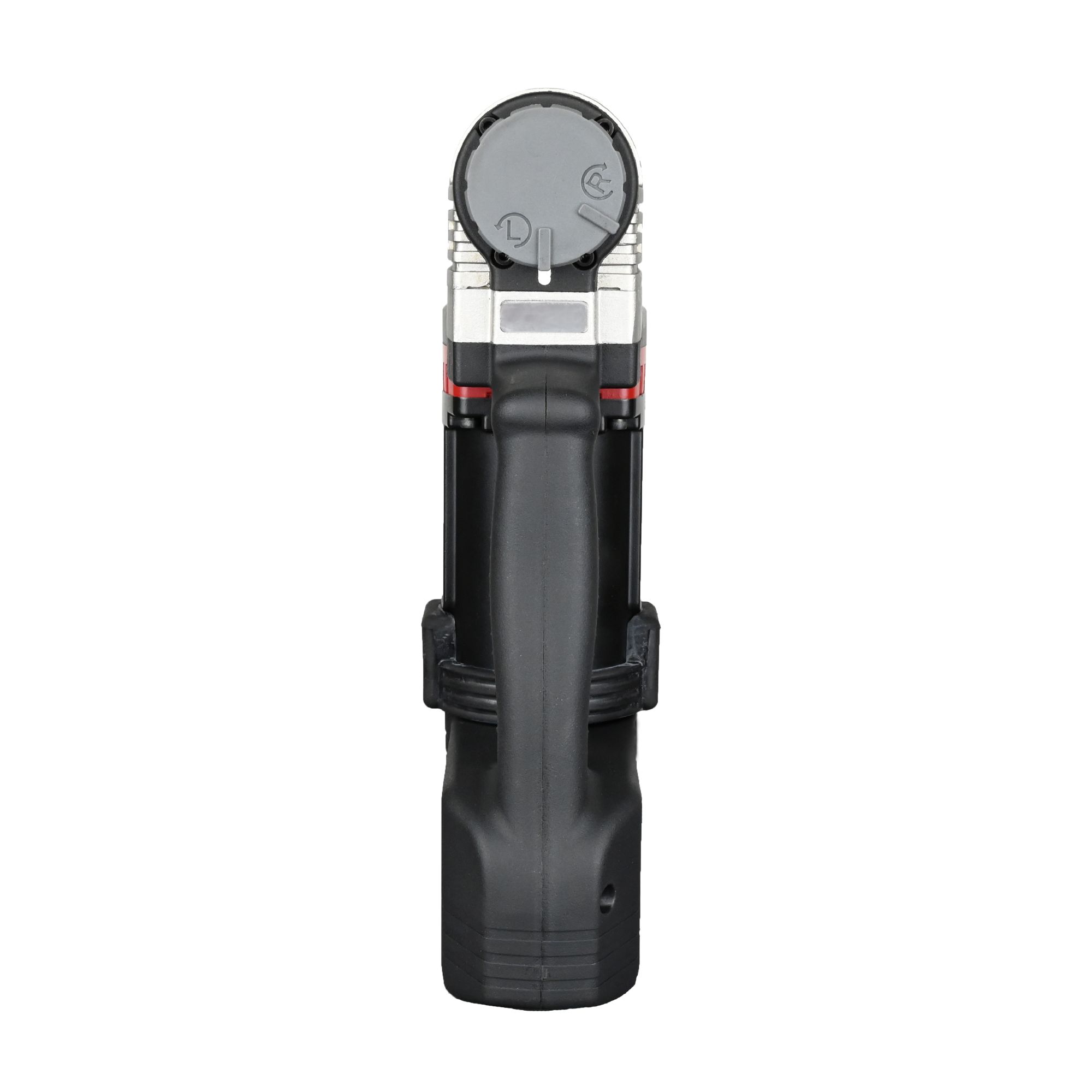

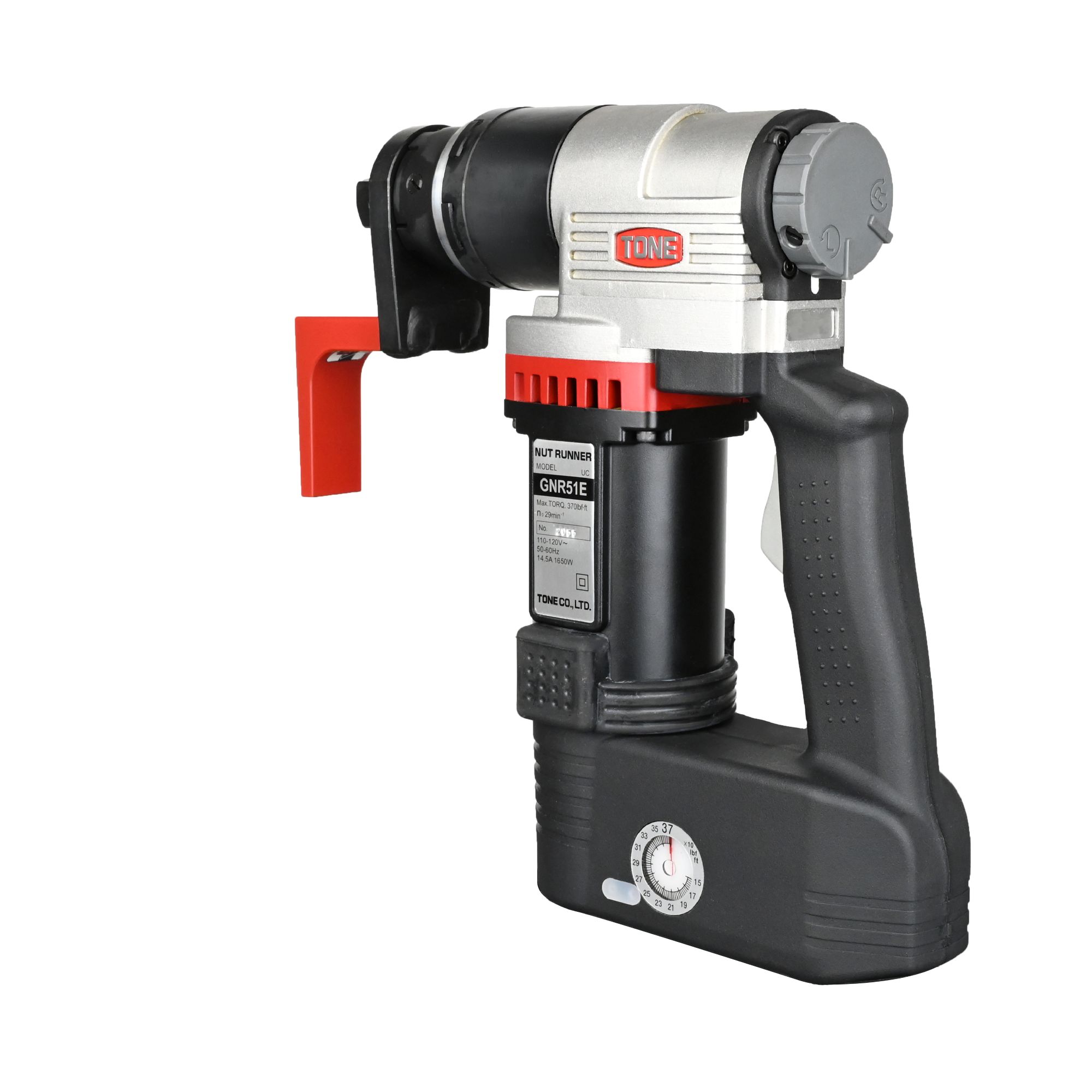

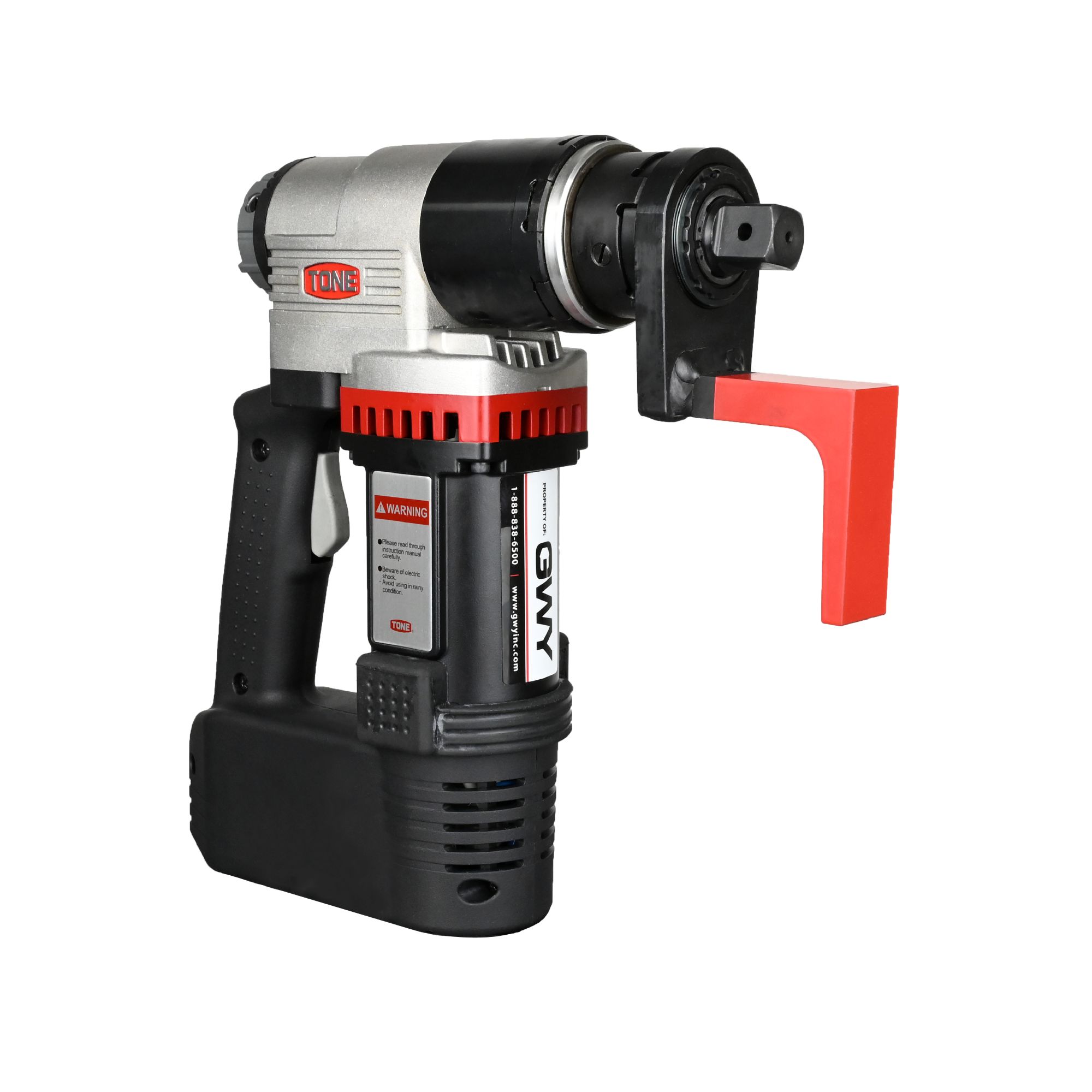

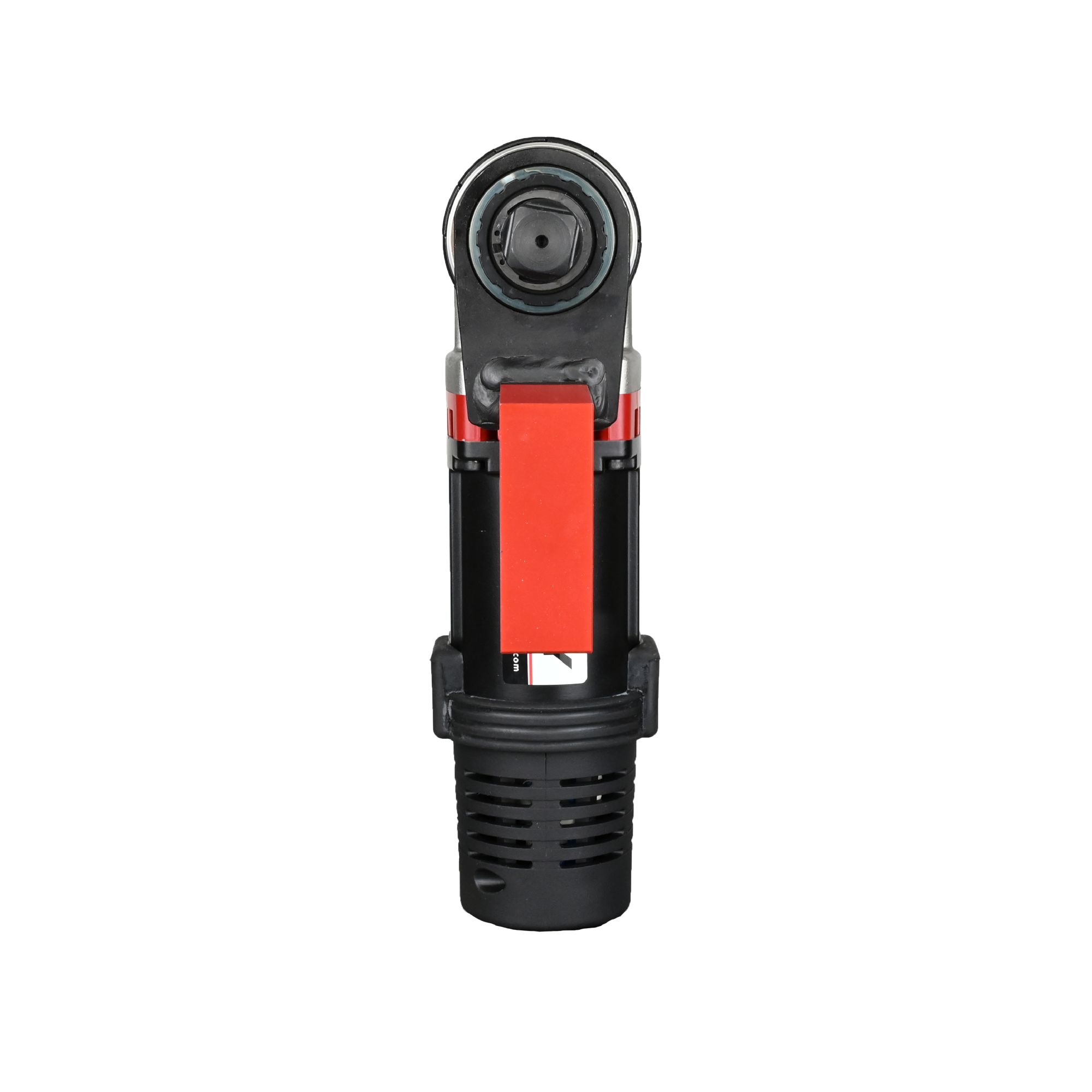

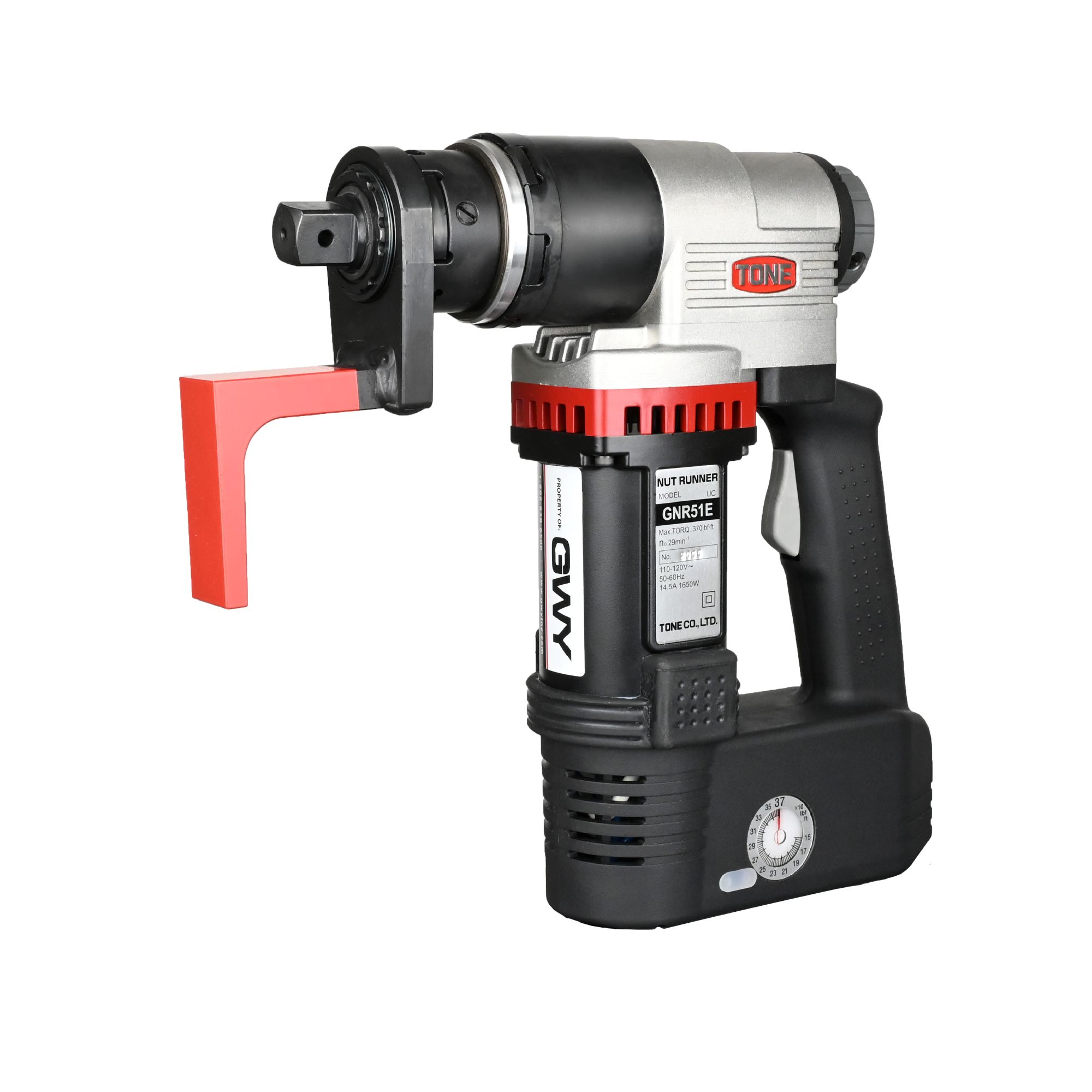

TONE GNR-51E Torque Wrench
State-of-the-art, high accuracy electric nut runner for torque-controlled installation. Powerful, compact, and lightweight.
| Fully Tensioned Structural Bolts:
A325 – 5/8”, 3/4” A325M – M16, M20 A490 – 5/8” A490M – M16 |
Adjustable Torque Range:
150-370 ft-lb. / 200-500 N-m
|
Specifications
| Model | TONE GNR-51E | TONE GNR-52E |
| Voltage | 110-120 V | 220-230 V |
| Maximum Current | 14.5 A | 7.5 A |
| Maximum Power Consumption | 1,650 W | 1,650 W |
| Adjustable Torque Range | 150~370 ft-lb. | 200~500 N-m |
| No-load Speed | 29 rpm | 29 rpm |
| Square Drive Size | 3/4″ drive | 3/4″ drive |
| Weight | 11.0 lb. | 5.0 kg |
- Repeated accuracy of ±5%
- Torque setting dial between 150~370 ft-lb.
- Clockwise and counterclockwise torque directions
- Colored LED indicator lights
- Double insulated for enhanced safety
Available Accessories
- X-Holder Extension 100mm (3-7/8″)
- Digital Torque Meter DTM5
- Impact Sockets
- Bar Sockets
Documents
Helpful resources:
Instruction Manual
Dimensioned Drawing
Parts Diagram
Torque Catalog
Extension Cord Chart
Safety Precautions
