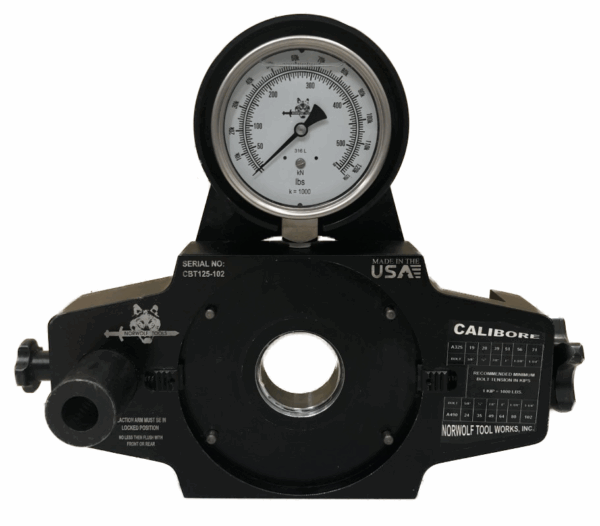

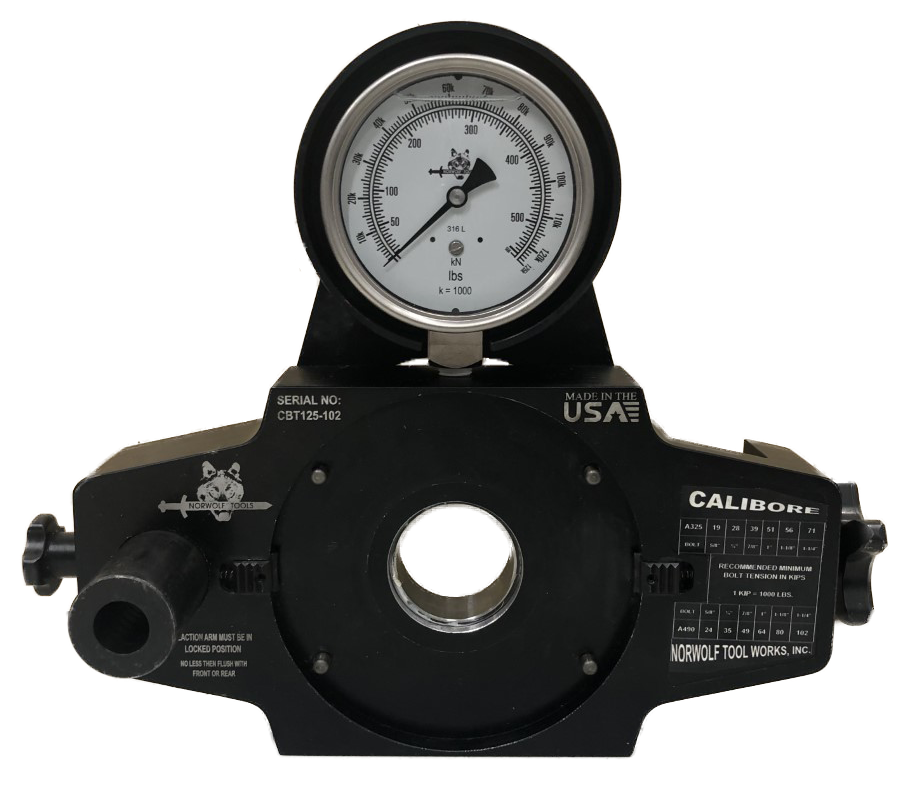

Norwolf Calibore 125
The Norwolf Calibore Bolt Tension Calibrator is the lightest, most compact and versatile in the industry. This all-in-one solution doesn’t require any additional tools to assemble so you can get right to work.
The Calibore 125 has a bolt tension capacity of 125,000 lb.
Calibrator Features & Benefits

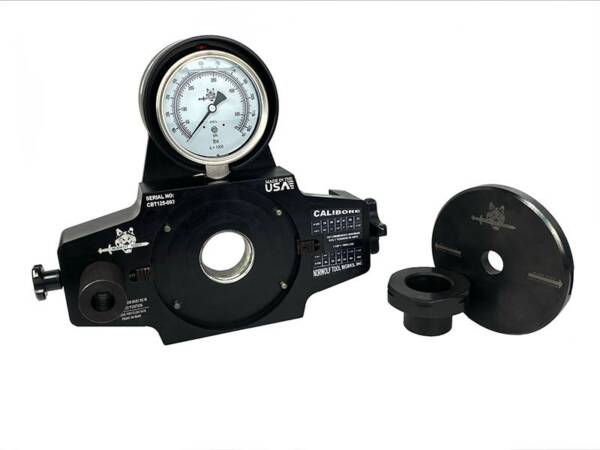

- “Snap-In” front plate & hex bushing
- Built in adjustable reaction bar
- Gauge reads in both pounds and kilo newtons
- Solid, heavy duty gauge protector
- Solid milled clamp that secures at points for beam mounting
- Drilled holes provided for base / table mounting
- Fitted, wheeled carrying case
- Light weight- 17.5 lb. (compared to competitors at 45 lb.)
- Available in 350K and 1,000k
Capacity: 125,000 lb. of Bolt Tension
Specifications
| CBT 125 | Minimum Bolt Length |
|---|---|
| Bolt Diameter | Bolt Length |
| 5/8″ | 1-5/8″ |
| 3/4″ | 1-3/4″ |
| 7/8″ | 1-7/8″ |
| 1″ | 3″ |
| 1 – 1/8″ | 3-1/8″ |
| 1 – 1/4″ | 3-1/4″ |
The Calibore 125 can be used with our adapter kits to test the following bolts sizes:
| Imperial | Metric |
| 5/8″ | M16 |
| 3/4″ | M18 |
| 7/8″ | M20 |
| 1″ | M222 |
| 1 – 1/8″ | M24 |
| 1 – 1/4″ | M27 |
| M30 |
| M33 |
Documents
Helpful resources:
Instruction Manual
Dimensioned Drawing
