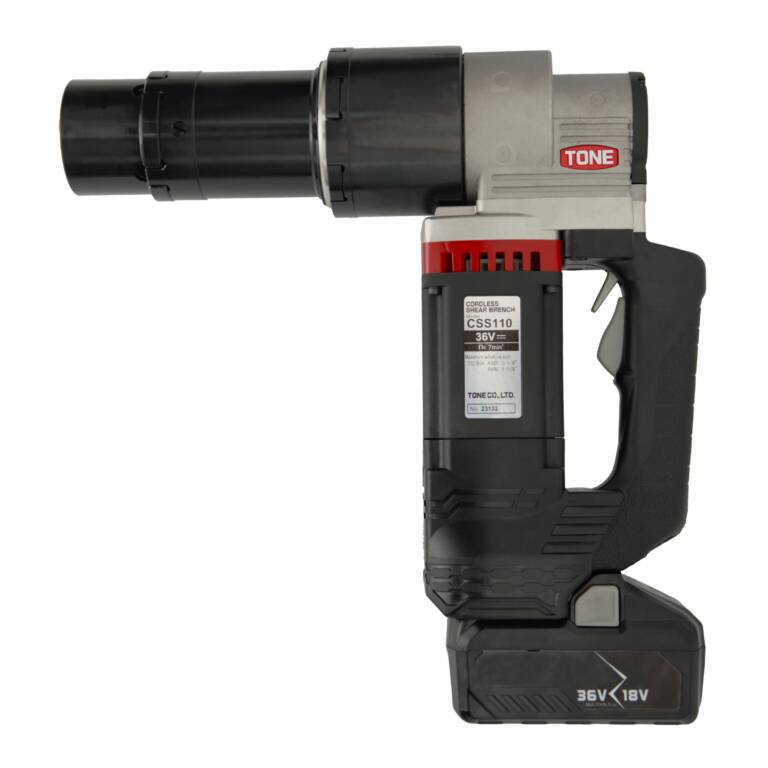

Image of a CSS110 Cordless Shear Wrench

TONE CSS110 Cordless TC Bolt Wrench

The CSS110 cordless shear wrench can easily tighten up to 150 (1 ⅛”, A325) bolts on a single battery charge. This wrench shears off the spline of a TC bolt when it reaches the correct tension. The ejector lever is then pulled to eject the spline for easy removal.

Fully Tensioned Structural Bolts: Maximum Torque:
A325- 3/4″, 7/8″, 1″, 1-1/8″

A325M- M20, M22, M24

A490- 3/4″, 7/8″, 1″, 1-1/8″

A490M- M20, M22, M24

 1,030 ft-lb. (1,396 N-m)
Talk to a Specialist
Want to talk to a specialist now?
(888) 838 6500
Business Hours: 8am - 5pm Est

Specifications

Model TONE CSS110
Voltage DC 36V
Maximum Torque 1,030 ft-lb. (1,396 N-m)
No-load Speed 7 rpm
Weight w/ Battery 21.6 lb. (9.8 kg)

Kit Includes

  • CSS 110 shear wrench
  • Two (2) batteries
  • Battery charger
  • Carrying case

Available Accessories

  • 200mm (7-7/8”) extension socket for 1” & 1-1/8” TC bolts
  • Inner & Outer Sockets

Documents

Helpful resources:

Dimensioned Drawings

Instruction Manual

Parts Diagram

Shear Catalog

Trusted by:

Testimonials

Kind words from our customers:

  • “From choosing the right equipment for each job’s unique requirements to problem solving in the field, GWY is always willing to go out of the way to find a solution. Mix that customer service in with their technical expertise and easy-to-use tools, they really help make bolt up easy.”

    Jake
    South Capital Bridgebuilders

  • “GWY has been a great company to work with. My company requires receipts for all credit card purchases and GWY has made this very easy. With rental equipment this usually isn't the easiest to deal with but they have made this process very smooth. I get a weekly receipt emailed to me without having to ask for it. They also have great customer service and are very helpful and friendly. Would definitely recommend.”

    Jeremy
    Faith Technologies, Inc.

FAQs

Does my shear wrench need to be calibrated?

No, shear wrenches do not have any settings for calibration. TC bolts are calibrated and come with mill certificates to prove calibration.

Are the same size sockets interchangeable between different tools?

Typically, the answer is no but there are exceptions.  The only interchangeable sockets for current model shear wrenches are between the GV-301ZA and the GVC-301EZ. The Older models like the S-60EZA share sockets with their newer models like the S-61EZ. The same is true for the S-90EZ and GS-91EZ as well as the S-110EZ and the GS-111EZ. There are a few TN tools that share sockets with each other such as the TN-20EZ and the TN-22EZ as well as the TN-30EZ and the TN-33EZ. The GNR series can share sockets with some of the TN tools. The GNR-31E, 51E, & 81E can use the TN-20EZ/22EZ bar sockets instead of impact sockets. The GNR-121E can use the bar sockets of the TN-24EZA and the GNR-211E can use the bar sockets of the TN-30EZ/33EZ. The GNR’s can also share impact sockets that have their correct drive size.

Does the tool come with anything?

All of our tools come with a case.  Our Turn-of-Nut & Shear Wrenches come with the one size socket and a metal case.  The cordless tools come with one or two batteries, a charger, and a case.

Is there a specific socket for bolts that have been galvanized or have a coating?

We do offer inner sockets for shear wrenches that are slightly oversized to accommodate the extra layer upon request.
