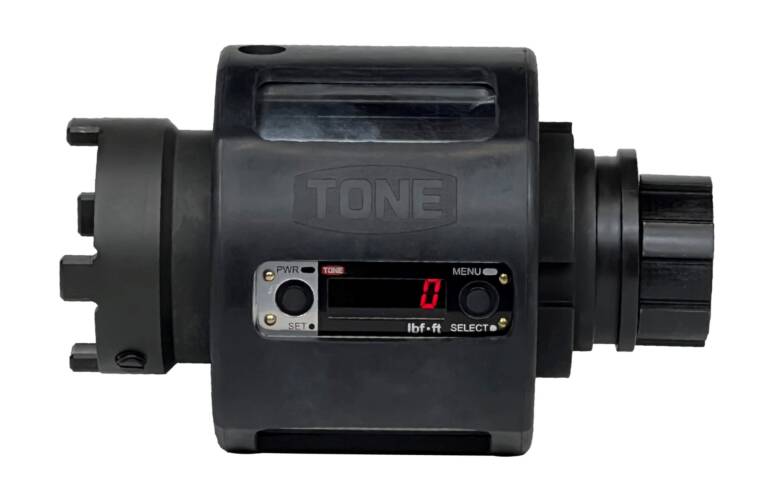

DTM 12 Digital Torque Meter
Digital Torque Meters (DTM) provide an easy-to-read torque display and a flash memory card that stores the date, time, and torque measurement for each bolt tightened. This information can be downloaded for reporting and quality assurance.
The DTM 12 reads a torque range of 410-920 ft-lb. and is compatible with the TN-24EZA, GPTN-241E, GNR-121E, and CNR-120.
Specifications
| Model | DTM 12EF |
| Torque Readout Range | 410-920 ft-lb. (550-1250 N-m) |
| Turn-of-Nut Compatibility | TN-24EZA & GPTN-241E |
| Torque Wrench Compatibility | GNR-121E & CNR-120 |
| Discontinued Models Compatibility | SR-121E & TN-24EZ |
| Length | 4-7/8″ (124 mm) |
| Depth | 4-3/16″ (106 mm) |
| Weight | 5.3 lb. (2.4 kg) |
- Clockwise & counterclockwise torque measurements
- ± 3% repeatable accuracy
- 10,000 readings powered by four AAA batteries
- Perfect for rotational capacity testing
