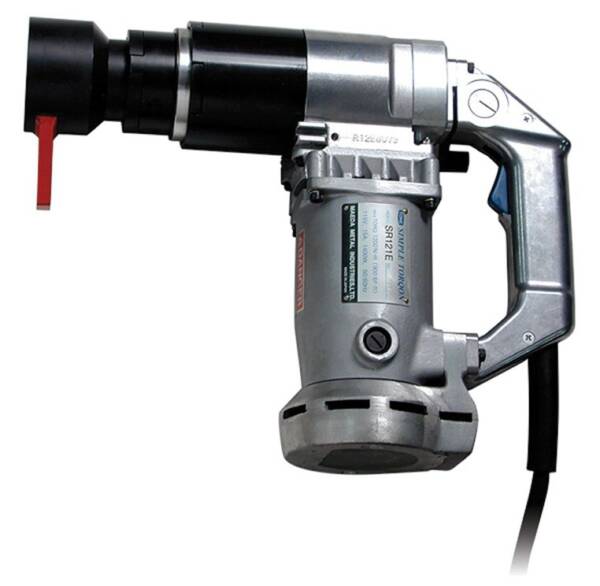

TONE SR-121E / SR-122E Electric Torque Control Wrench
The SR-121E / SR-122E torque control wrench has an adjustable torque range of 370-900 ft-lb. Available accessories include the DTM12, 100mm and 200mm x-holder socket extensions, as well as 3/4″, 7/8″, 1″, 1-1/8″ bar sockets.
| Fully Tensioned Structural Bolts | Maximum Torque |
| A325 – 3/4″, 7/8″, 1″ | 370-900 ft-lb. |
| A325M – M20, M22, M24 | 500-1,200 N-m |
| A490 – 3/4″, 7/8″ | |
| A325M – M20, M22 |
Want to talk to a specialist now?
(888) 838 6500
Business Hours: 8am - 5pm Est
Specifications
| Model | SR-121E | SR-122E |
| Voltage | 115 V | 220 V |
| Maximum Current | 15 A | 7.5 A |
| Frequency | 50-60 Hz | 50-60 Hz |
| Rated Power | 1,400 W | 1,400 W |
| Torque Range | 370-900 ft-lb. | 500-1200 N-m |
| No-load Speed | 16 rpm | 16 rpm |
| Weight | 19.4 lb. | 8.8 kg |
TONE SR-121E / SR-122E Electric Torque Control Wrench Parts
| Part # | Description | Q’ty |
| 1 | BAR SOCKET | 1 |
| 2 | BAR SKT WARNING LABEL | 1 |
| 3 | SPIROLOX | 1 |
| 4 | SPIRO STOPPER | 1 |
| 5 | SUB SPIRO STOPPER | 1 |
| 6 | SPIROLOX | 1 |
| 7 | SET SCREW | 2 |
| 8 | OUTER SOCKET HOLDER | 1 |
| 9 | INNER SOCKET HOLDER ASS’Y | 1 |
| 10 | BUSH | 1 |
| 11 | HSH REAMER BOLT | 3 |
| 12 | 3RD SPIDER ASS’Y | 1 |
| 13 | STEEL BALL | 34 |
| STEEL BALL | 4 | |
| 14 | INTERNAL GEAR | 1 |
| 15 | BUSH | 1 |
| 16 | 3RD GEAR PIN | 3 |
| 17 | 3RD IDLE GEAR | 3 |
| 18 | NEEDLE CAGE | 6 |
| 19 | GEAR CASE | 1 |
| 20 | BUSH | 1 |
| 21 | 3RD PINION GEAR | 1 |
| 22 | 2ND IDLE GEAR ASS’Y | 1 |
| 23 | 2ND GEAR PIN | 3 |
| 24 | 2ND CAGE | 1 |
| 25 | NEEDLE CAGE | 3 |
| 26 | 2ND IDLE GEAR | 3 |
| 27 | 2ND PINION GEAR | 1 |
| 28 | BUSH | 1 |
| 29 | 1ST IDLE GEAR ASS’Y | 1 |
| 30 | 1ST GEAR PIN | 3 |
| 31 | 1ST CAGE | 1 |
| 32 | BEARING | 3 |
| 33 | 1ST IDLE GEAR | 3 |
| 34 | FRICTION DISK | 1 |
| 35 | SPIROLOX | 1 |
| 36 | SPIRO WASHER | 1 |
| 37 | BEARING | 1 |
| 38 | THRUST WASHER | 1 |
| 39 | STEPPED BUSH | 1 |
| 40 | FLANGE | 1 |
| 41 | HSH BOLT M4X10 | 6 |
| 42 | BEARING | 1 |
| 43 | SPIROLOX | 1 |
| 44 | HOUSING | 1 |
| 45 | RETAINING RING C-TYPE | 2 |
| 46 | BEARING | 2 |
| 47 | BEVEL GEAR | 1 |
| 48 | 1ST PINION GEAR | 1 |
| 49 | SPIROLOX | 1 |
| 50 | BUSH | 1 |
| 51 | STEEL BALL | 15 |
| STEEL BALL | 15 | |
| 52 | CHANGE SPOOL | 1 |
| 53 | SPOOL GUIDE | 1 |
| 54 | GUIDE PIN | 2 |
| 55 | STEEL BALL | 23 |
| STEEL BALL | 1 | |
| 56 | CHANGE DRUM | 1 |
| 57 | BEARING | 1 |
| 58 | HOUSING COVER | 1 |
| 59 | SPRING | 1 |
| 60 | HSH BOLT M5X45 | 4 |
| 61A | CHANGE LEVER BASE PLATE | 1 |
| 61B | CHANGE LEVER KNOB | 1 |
| 61C | CRFH SCREW M4X8 | 1 |
| 62 | SPIROLOX | 1 |
| 63 | E-NUT M5 | 2 |
| 64 | PINION BEVEL GEAR | 1 |
| 65 | WOODRUFF KEY | 2 |
| 66 | BEARING | 1 |
| 67 | RETAINING RING C-TYPE | 1 |
| 68 | MOTOR GEAR | 1 |
| 69 | RETAINING RING C-TYPE | 1 |
| 70 | RETAINING RING C-TYPE | 1 |
| 71 | MOTOR PINION | 1 |
| 72 | STUD BOLT | 2 |
| 73 | HSH BOLT M5X16 | 4 |
| 74A | MOTOR ASS’Y 115V | 1 |
| 74B | MOTOR ASS’Y 220V | 1 |
| 75A | BEARING BRACKET ASS’Y 115V | 1 |
| 75B | BEARING BRACKET ASS’Y 220V | 1 |
| 76 | BEARING | 1 |
| 77A | ARMATURE 115V | 1 |
| 77B | ARMATURE 220V | 1 |
| 78 | BEARING | 1 |
| 79A | STATOR 115V | 1 |
| 79B | STATOR 220V | 1 |
| 80 | CRPH SCREW M5X55 W/ WASHER | 2 |
| 81 | INSULATING WASHER | 2 |
| 82A | STATOR SPIDER ASS’Y 115V | 1 |
| 82B | STATOR SPIDER ASS’Y 220V | 1 |
| 83 | CARBON BRUSH | 2 |
| 84 | BRUSH CAP | 2 |
| 85 | HSH BOLT M5X25 W/ WASHER | 4 |
| 86A | RATING PLATE 115V | 1 |
| 86B | RATING PLATE 220V | 1 |
| 87 | RIVET | 4 |
| 88 | WARNING LABEL | 1 |
| 89 | CRFH SCREW M3X8 | 2 |
| 90 | GRIP | 1 |
| 91 | HSH BOLT M5X30 | 2 |
| 93 | CAVITY HSH SET SCREW M2.6X3 | 2 |
| 94 | DIAL | 1 |
| 95 | SUPPORT | 2 |
| 96 | SET BOARD | 1 |
| 97 | SET SPRING | 1 |
| 98 | SPRING WASHER M3 | 2 |
| 99 | CRPH SCREW M3X8 | 2 |
| 100 | CRPH SCREW M4X6 W/ WASHER | 5 |
| 102 | CORD CLAMP | 2 |
| 103 | CRPH SCREW M4X14 | 2 |
| 104 | CORD ARMOUR | 1 |
| 105 | CORD ARMOUR WASHER | 1 |
| 106A | CORD ASS’Y 115V | 1 |
| 106B | CORD ASS’Y 220V | 1 |
| 107 | PLUG 220V | 1 |
| 108 | INSULATED CONNECTOR | 4 |
| 109 | CONDENSER | 1 |
| 110A | GRADUATION LB-FT | 1 |
| 110B | GRADUATION Nm | 1 |
| 111 | CRFH SCREW M4X30 | 2 |
| 112 | GRIP COVER | 1 |
| 114 | CRFH SCREW M5X12 | 2 |
| 115A | CONTROL BOX ASS’Y 115V (INCL #113 & #116) | 1 |
| 115B | CONTROL BOX ASS’Y 220V (INCL #113 & #116) | 1 |
| 117 | CRFH SCREW M5X30 | 2 |
| 118 | VOLUME ASS’Y | 1 |
| 119 | WASHER M4 | 2 |
| 120 | 1ST PINION GEAR ASS’Y | 1 |
| 121 | METAL CASE | 1 |
| 200 | TRIGGER SWITCH ASS’Y | 1 |
Parts not listed are part of an assembly and are not available separately.
