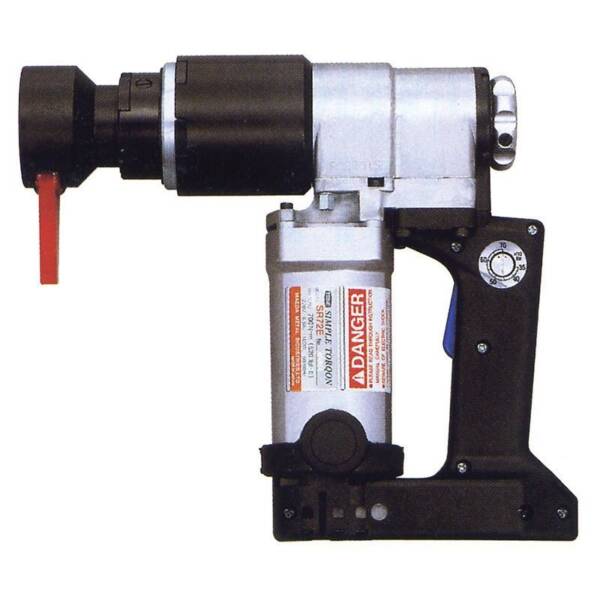

TONE SR-71E / SR-72E Electric Torque Control Wrench
The SR-71E / SR-72E torque control wrench has an adjustable torque range of 260-520 ft-lb. Available accessories include the DTM8, 100mm x-holder socket extension, as well as 5/8″, 3/4″, 7/8″, and 1″ bar sockets.
| Fully Tensioned Structural Bolts | Maximum Torque |
| A325 – 5/8″, 3/4″, 7/8″ | 260-520 ft-lb. |
| A325M – M16, M20, M22 | 350-700 N-m |
| A490 – 5/8″, 3/4″ | |
| A325M – M16, M20 |
Want to talk to a specialist now?
(888) 838 6500
Business Hours: 8am - 5pm Est
Specifications
| Model | SR-71E | SR-72E |
| Voltage | 115 V | 220 V |
| Maximum Current | 13.5 A | 6.5 A |
| Frequency | 50-60 Hz | 50-60 Hz |
| Rated Power | 1,100 W | 1,100 W |
| Torque Range | 260-520 ft-lb. | 350-700 N-m |
| No-load Speed | 17 rpm | 17 rpm |
| Weight | 12 lb. | 5.5 kg |
TONE SR-71E / SR-72E Electric Torque Control Wrench Parts
| Part # | Description | Q’ty |
| 1 | BAR SOCKET | 1 |
| 2 | BAR SKT WARNING LABEL | 1 |
| 3 | SPIROLOX | 1 |
| 4 | SPIRO STOPPER | 1 |
| 5 | SPIROLOX | 1 |
| 6 | SET SCREW | 2 |
| 7 | OUTER SOCKET HOLDER | 1 |
| 8 | BUSH | 1 |
| 9 | INNER SOCKET HOLDER ASS’Y | 1 |
| 10 | 3RD IDLE GEAR ASS’Y | 1 |
| 11 | 3RD CAGE | 1 |
| 12 | 3RD IDLE GEAR | 4 |
| 13 | NEEDLE CAGE | 8 |
| 14 | 3RD GEAR PIN | 4 |
| 15 | STEEL BALL | 35 |
| STEEL BALL | 4 | |
| 16 | BUSH | 1 |
| 17 | INTERNAL GEAR | 1 |
| 18 | 3RD PINION GEAR | 1 |
| 19 | BUSH | 1 |
| 20 | 2ND IDLE GEAR ASS’Y | 1 |
| 21 | 2ND CAGE | 1 |
| 22 | 2ND IDLE GEAR | 4 |
| 23 | NEEDLE CAGE | 4 |
| 24 | 2ND GEAR PIN | 4 |
| 25 | 2ND PINION GEAR | 1 |
| 26 | BUSH | 1 |
| 27 | 1ST IDLE GEAR ASS’Y | 1 |
| 28 | 1ST GEAR PIN | 3 |
| 29 | 1ST CAGE | 1 |
| 30 | NEEDLE CAGE | 3 |
| 31 | 1ST IDLE GEAR | 3 |
| 32 | BEARING | 1 |
| 33 | FRICTION DISK | 1 |
| 34 | SPIROLOX | 1 |
| 35 | SPIRO WASHER | 1 |
| 36 | BEARING | 1 |
| 37 | HOUSING | 1 |
| 38 | CRPH SCREW M4X10 | 4 |
| 39 | THRUST WASHER | 1 |
| 40 | BEARING | 2 |
| 41 | STEPPED BUSH | 1 |
| 42 | CIRCLIP | 2 |
| 43 | NEEDLE CAGE | 2 |
| 44 | BEVEL GEAR | 2 |
| 45 | BEARING | 1 |
| 46 | 1ST PINION GEAR | 1 |
| 47 | CHANGE SPOOL | 1 |
| 48 | CIRCLIP | 1 |
| 49 | BEARING | 1 |
| 50 | NEEDLE PIN | 1 |
| 51 | SPOOL GUIDE | 1 |
| 52 | RETAINING RING C-TYPE | 1 |
| 53 | BEARING | 1 |
| 54 | SPOOL HOLDER | 1 |
| 55 | GUIDE PIN | 2 |
| 56 | SPIROLOX | 1 |
| 57 | RETAINING RING C-TYPE | 1 |
| 58 | CHANGE DRUM | 1 |
| 59 | HOUSING COVER | 1 |
| 60 | HSH BOLT M4X12 | 4 |
| 61 | CLICK PLUNGER ASS’Y | 2 |
| 62 | CHANGE GRIP | 1 |
| 63 | PINION BEVEL GEAR | 1 |
| 64 | KEY | 1 |
| 65 | BEARING | 1 |
| 66 | MOTOR GEAR | 1 |
| 67 | RETAINING RING C-TYPE | 1 |
| 68 | BEARING | 1 |
| 69 | HSH BOLT M4X30 | 2 |
| 70 | STUD BOLT | 2 |
| 71 | IDLE PIN | 1 |
| 72 | MOTOR IDLE GEAR | 1 |
| 73 | BEARING | 1 |
| 74 | SPIROLOX | 1 |
| 75 | BUSH | 1 |
| 76 | HSH BOLT M4X20 | 2 |
| 77 | BRACKET | 1 |
| 78 | E-NUT M5 | 2 |
| 79 | HSH BUTTON BOLT M5X12 | 1 |
| 80A | MOTOR ASS’Y 115V | 1 |
| 80B | MOTOR ASS’Y 220V | 1 |
| 81 | RETAINING RING C-TYPE | 1 |
| 82 | BEARING | 1 |
| 83 | BEARING BRACKET | 1 |
| 84A | ARMATURE 115V | 1 |
| 84B | ARMATURE 220V | 1 |
| 85 | CRPH SCREW M4X65 W/ WASHER | 2 |
| 86 | BEARING | 1 |
| 87A | STATOR 115V | 1 |
| 87B | STATOR 220V | 1 |
| 88 | INSULATING WASHER | 2 |
| 89A | STATOR SPIDER ASS’Y 115V | 1 |
| 89B | STATOR SPIDER ASS’Y 220V | 1 |
| 90 | CARBON BRUSH | 2 |
| 91 | BRUSH CAP | 2 |
| 92 | RUBBER PLUG | 1 |
| 93 | WARNING LABEL | 1 |
| 94A | RATING PLATE 115V | 1 |
| 94B | RATING PLATE 220V | 1 |
| 95 | CRPH SCREW M4X6 W/ WASHER | 1 |
| 96 | CUSHION RUBBER | 1 |
| 97 | HSH BOLT M5X35 | 4 |
| 98 | GRIP | 1 |
| 99 | CRPH SCREW M4X35 | 2 |
| 100 | PIN | 1 |
| 101 | SWITCH LEVER | 1 |
| 102 | SPACER | 2 |
| 103 | SET BOARD | 1 |
| 104 | CAVITY HSH SET SCREW M2.6X3 | 2 |
| 105 | DIAL | 1 |
| 106 | SET SPRING | 1 |
| 107 | SPRING WASHER M3 | 2 |
| 108 | CRPH SCREW M3X6 | 2 |
| 109 | TRIGGER SWITCH | 1 |
| 110 | CRPH SCREW M3X14 | 2 |
| 111 | INSULATED CONNECTOR | 4 |
| 112 | GRIP COVER | 1 |
| 113 | CRPH SCREW M4X14 | 7 |
| 114A | GRADUATION LB-FT | 1 |
| 114B | GRADUATION Nm | 1 |
| 115 | CORD ARMOUR | 1 |
| 116 | CORD ARMOUR WASHER | 1 |
| 117 | CONDENSER | 1 |
| 118A | CONTROL BASE ASS’Y 115V | 1 |
| 118B | CONTROL BASE ASS’Y 220V | 1 |
| 119A | CORD ASS’Y 115V | 1 |
| 119B | CORD ASS’Y 220V | 1 |
| 120 | INSULATED TERMINAL | 1 |
| 122 | 1ST PINION GEAR ASS’Y | 1 |
| 123 | VOLUME ASS’Y | 1 |
| 124 | METAL CASE | 1 |
Parts not listed are part of an assembly and are not available separately.
