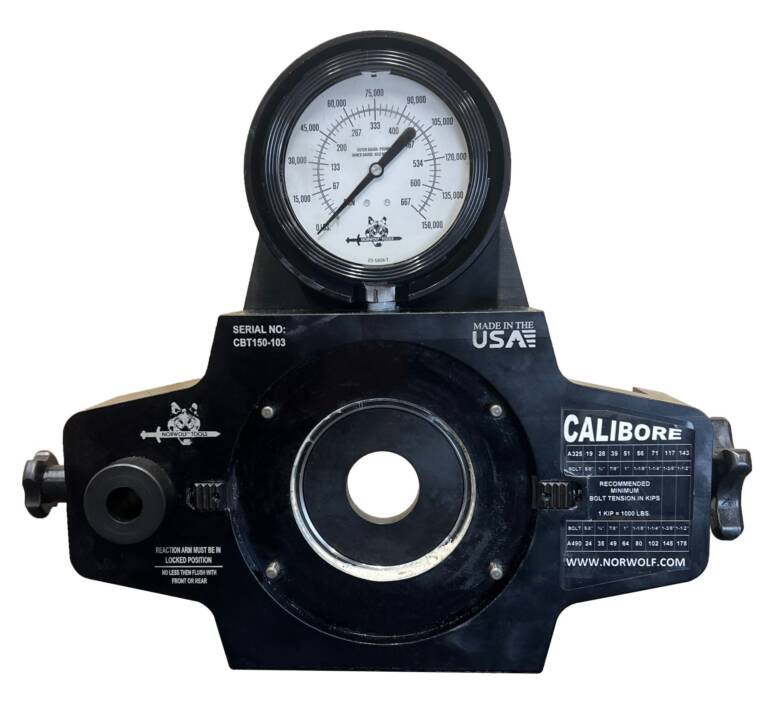

Norwolf Calibore 150
The Norwolf Calibore Bolt Tension Calibrator is the lightest, most compact and versatile in the industry. This all-in-one solution doesn’t require any additional tools to assemble so you can get right to work.
The Calibore 150 has a bolt tension capacity of 150,000 lb. and is the perfect in between calibrator for short to long length, hex head and TC bolts with diameters ranging from 1/2″ to 1-3/8″
Calibrator Features & Benefits
- “Snap-In” front plate & hex bushing
- Built in adjustable reaction bar
- Gauge reads in both pounds and kilo newtons
- Solid, heavy duty gauge protector
- Solid milled clamp that secures at points for beam mounting
- Drilled holes provided for base/ table mounting
- Fitted, wheeled carrying case
- Light weight at 19.5 lb. (compared to competitors at 45 lb.)
- Calibrates short and long bolts ranging from 1/2″ to 1-3/8″
- Available in 350K and 1,000K
Capacity: 150,000 lb. of Bolt Tension
Specifications
| CBT 150 | Minimum Bolt Length | Minimum Bolt Length |
|---|---|---|
| Bolt Diameter | Bolt Length* (with 1/8″ washer) | Bolt Length* (without washer) |
| 1/2″ | 1 – 11/16″ | 1 – 9/16″ |
| 5/8″ | 1 – 13/16″ | 1 – 11/16″ |
| 3/4″ | 1 – 15/16″ | 1 – 13/16″ |
| 7/8″ | 2 – 1/16″ | 1 – 15/16″ |
| 1″ | 2 – 3/16″ | 2 – 1/16″ |
| 1 – 1/8″ | 2 – 3/8″ | 2 – 1/4″ |
| 1 – 1/4″ | 2 – 1/2″ | 2 – 3/8″ |
| 1 – 3/8″ | 2 – 11/16″ | 2 – 9/16″ |
*For an additional cost, alterations to accommodate shorter bolt lengths can be made
The Calibore 150 can be used with our adapter kits to test the following bolts sizes:
| Imperial | Metric |
| 1/2″ | M14 |
| 5/8″ | M16 |
| 3/4″ | M18 |
| 7/8″ | M20 |
| 1″ | M22 |
| 1 – 1/8″ | M24 |
| 1 – 1/4″ | M27 |
| 1 – 3/8″ | M30 |
| M33 |
