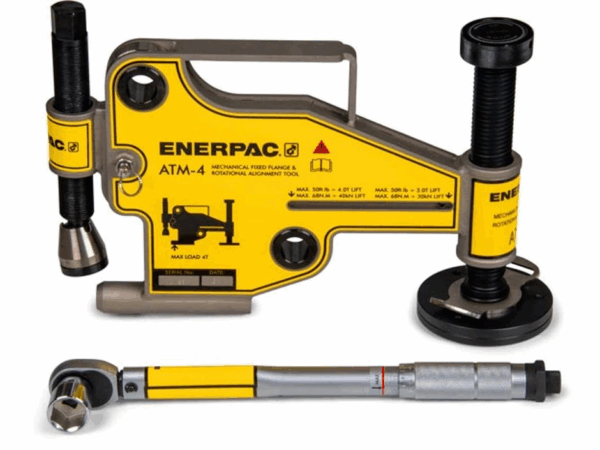

Enerpac ATM4 Flange Alignment Tool

The ATM4 Flange Alignment Tool rectifies misalignment quickly and safely, while providing a lightweight, portable, and productive solution with a maximum reaction force of 4 tons.

Talk to a Specialist
Want to talk to a specialist now?
(888) 838 6500
Business Hours: 8am - 5pm Est


Model Enerpac ATM4
Maximum Reaction Force 4 ton (imperial ton)
Minimum Bolt Size  1″
Maximum Flange Thickness 1.18″ – 5.23″
Reaction Force 2 Max 4 ton (imperial ton)
Weight  19 lb. (8.6 kg)


  • ATM-Series tools help correct flange misalignment and allow bolts to be placed into joints
    • This alignment takes place during pipe work construction or maintenance
  • These tools provide pipe installers and maintenance personnel with some of the simplest, safest, and most productive solutions available for flange alignment in the market today
  • ATM-Series tools rectify twist and rotational misalignment quickly, safely, and without the need for an external power source
  • Appropriate for use on most ANSI, API, BS and DIN flanges
  • No slings, hooks, or lifting gear required
  • Can be installed and used in any position- horizontally or vertically
  • Portable, lightweight design enables easy transport and use, even in remote locations

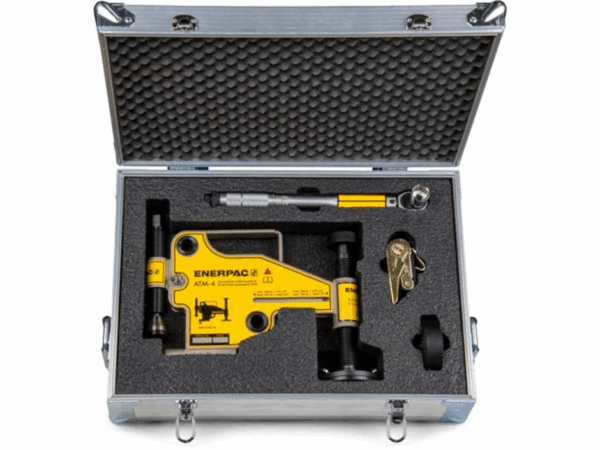

  • Each ATM-model contains a tool and kit box


Helpful resources:

ATM4 Dimensioned Drawing

ATM4 Instruction Manual
