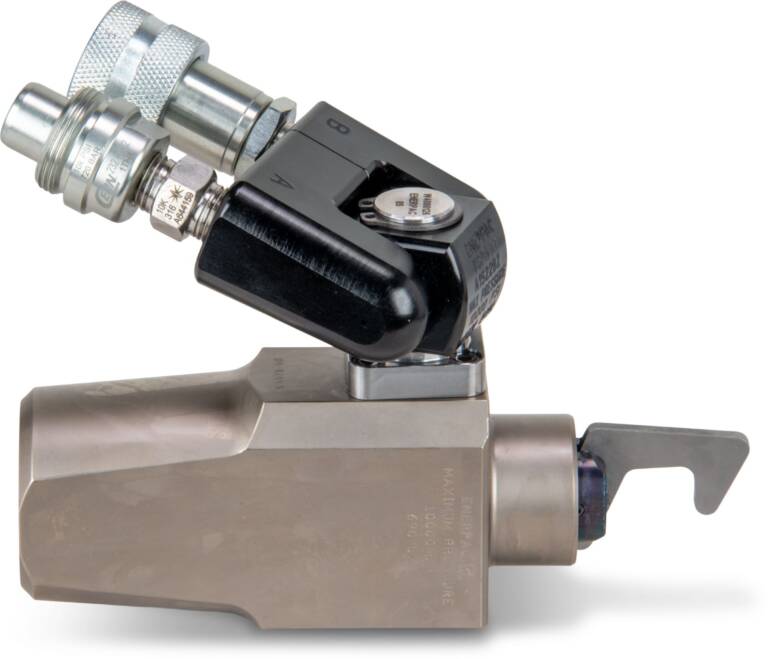

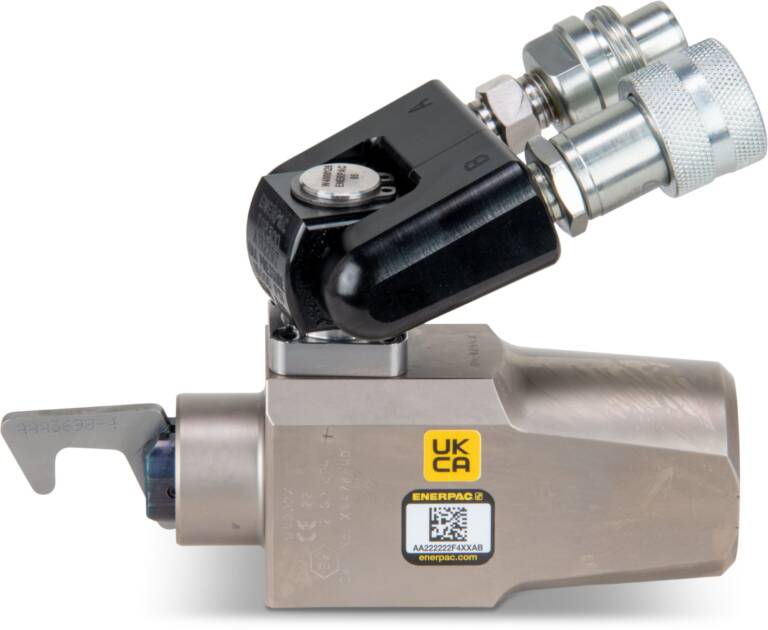

Enerpac W4000PX Pro Series Swivel Low Profile Torque Wrench Drive Unit
The W4000PX Low-profile hydraulic torque wrench has a maximum torque output of 4,175 ft-lb and superior strength to size ratio that provides easy access to difficult to reach applications without sacrificing endurance.
Hydraulic torque wrench drive units are used in combination with the W-Series Hex Cassettes. The Pro Series Swivel features tilt and swivel technology providing 360° X-axis rotation and 160° Y-axis rotation.
Specifications
| Model | ENERPAC W4000PX |
| Nominal Torque Rated At | 10,000 psi (690 bar) |
| Maximum Torque Output | 4,175 ft-lb. (5,661 N-m) |
| Minimum Torque Rated At | 1000 psi (69 bar) |
| Minimum Torque | 417 ft-lb. (566 N-m) |
| Hexagon Range (in) | 1-5/16″ to 3-3/8″ |
| Hexagon Range (mm) | 36 – 85 mm |
| Weight | 4.44 lb. |
- Fitted with the TSP swivel X-Edition hexagon hydraulic torque wrenches set a new standard in safety, simplicity and performance
- Superior strength to size ratio provides easy access to difficult to reach applications without sacrificing endurance
- 30° rotation angle and rapid return stroke provide fast operation
- Tough manifold design with added safety feature for enhanced operator safety
- Fast release drive unit enables rapid exchange of cassettes, no tools required
- Quick and easy disassembly for maintenance without special tools
- Includes robust handles which mount on both sides, and the tops of cassettes to allow for extra maneuverability
- Available with optional enhanced tilt and swivel TSP300 manifold for horizontal and vertical maneuverability, with greater durability
- X-Edition drive units, cassettes and most accessories are compatible with standard edition tools.
- Drive unit compatible with UltraSlim and WCR-Series cassettes
- Constant torque output provides accuracy of ± 3% across full stroke
W4000PX Drive Unit Cassettes (available to purchase)
| Model Number | Cassette Size* | Heavy-Hex Bolt Diameter |
|---|---|---|
| W4107 | 1-7/16″ | 7/8″ |
| W4110 | 1-5/8″ | 1″ |
| W4113 | 1-13/16″ | 1-1/8″ |
| W4200 | 2″ | 1-1/4″ |
| W4203 | 2-3/16″ | 1-3/8″ |
| W4206 | 2-3/8″ | 1-1/2″ |
| W4211 | 2-3/4″ | 1-3/4″ |
| W4302 | 3-1/8″ | 2″ |
*Additional cassette sizes are available to purchase
