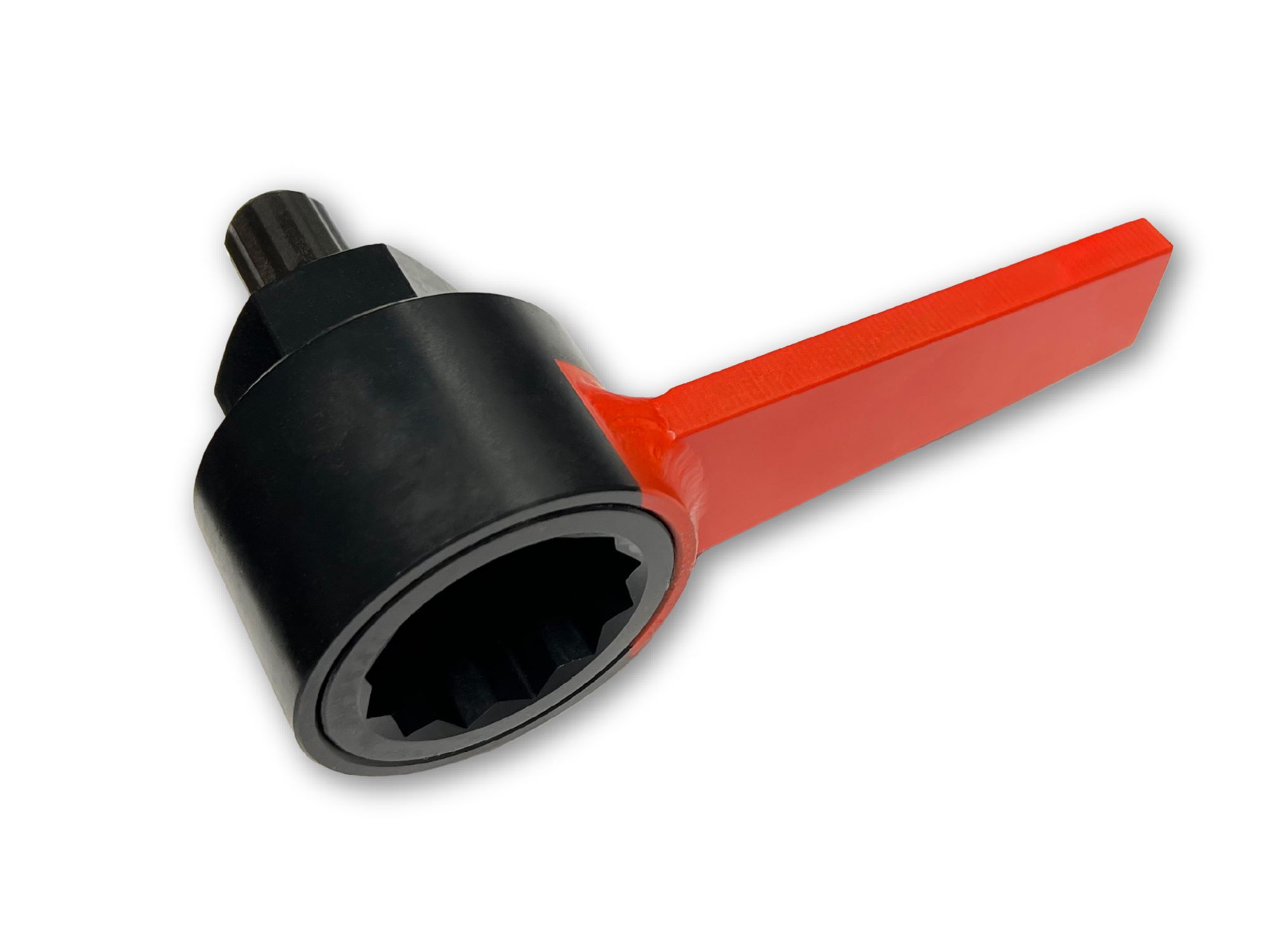

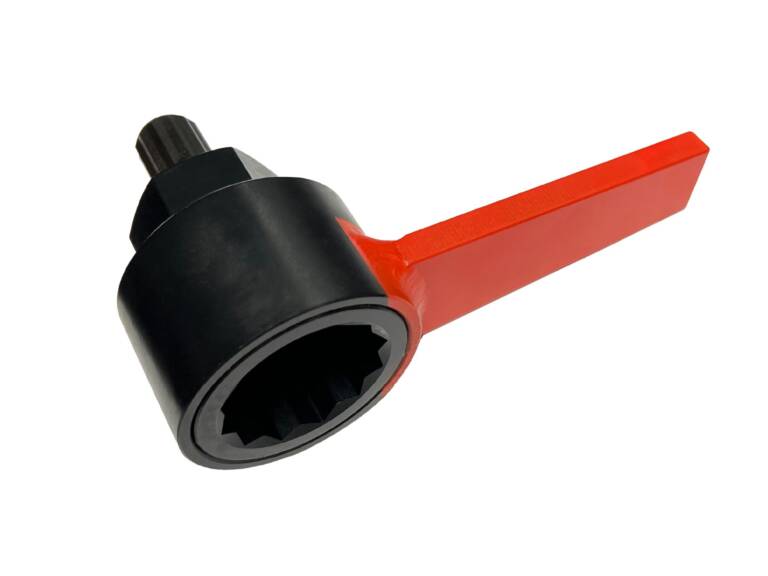

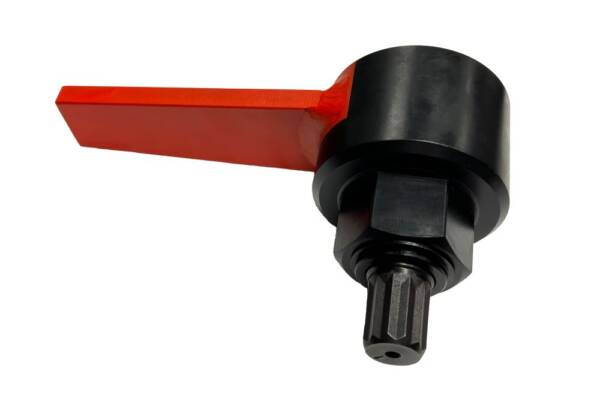

Nut Buster
Nut Busters are an effective tool designed for removing TC bolts when used in conjunction with a shear wrench. Its precise reverse thread design guarantees stability and efficiency during the bolt removal process.

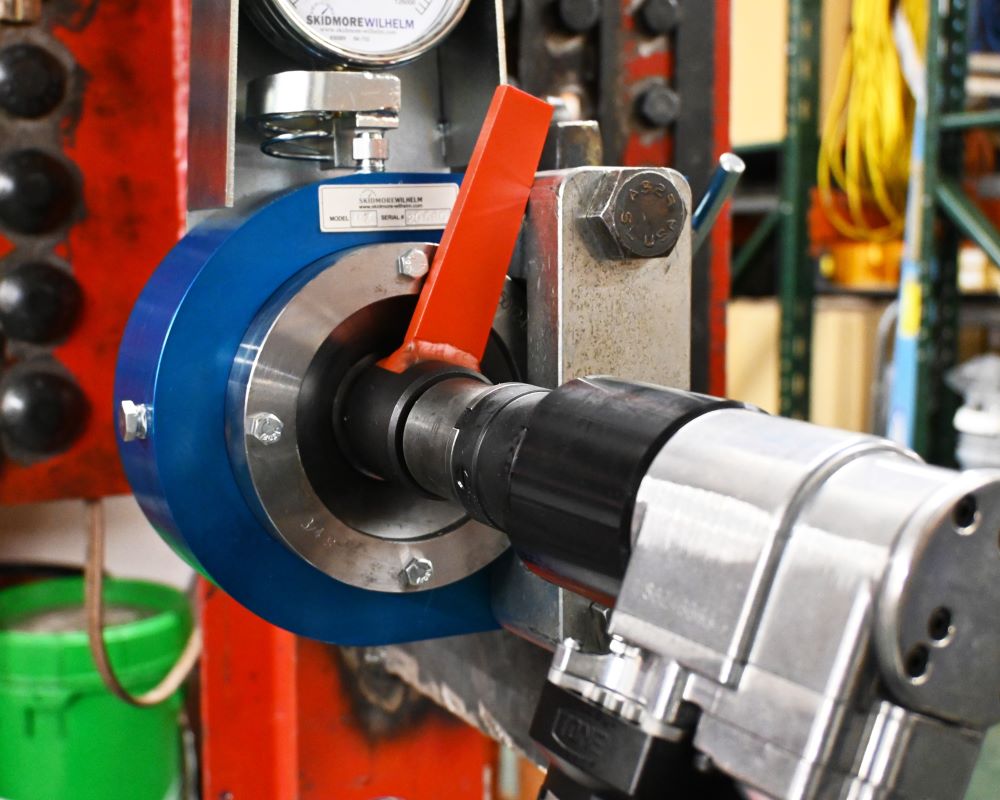

Inserts directly into the socket of a shear wrench and is Ideally used for maintaining performance and safety in high-pressure and high-load applications including after bolt testing procedures.
For more information, read our blog on Removing TC Bolts Using a Nut Buster.
| Adaptable TC Bolt Diameters: |
| A325 & A490 – 3/4″, 7/8″, 1″ & 1-1/8″ |
Specifications
| TC Bolt Diameter | Metric | Shear Wrench Compatibility | Weight |
| 3/4″ | M20 | S-61EZ, GS-91EZ, GS-111EZ, CSS60, CSS90, CSS110, GMC-221EZ, GHC-241EZ, USS-221EZ, S-20HA, S-24HA, XTW01, 6922NB | 2 lb. (0.9 kg) |
| 7/8″ | M22 | S-61EZ, GS-91EZ, GS-111EZ, CSS60, CSS90, CSS110, GMC-221EZ, GHC-241EZ, USS-221EZ, S-24HA, XTW01, 6922NB | 3 lb. (1.6 kg) |
| 1″ | M24 | GS-91EZ, GS-111EZ, CSS90, CSS110, GV-301ZA, GHC-241EZ, GVC-301E, S-24HA | 4 lb. (1.8 kg) |
| 1-1/8″ | M27 | GS-111EZ, CSS110, GV-301ZA, GVC-301E | 6 lb. (2.7 kg) |
Features
- Eliminates the need for additional tools such as a spud wrench
- No tedious preparation work and quick disassembly for easy operation
- Equipped with a reaction arm that absorbs the installation torque instead of the worker
- Portable and versatile design makes it a suitable solution that won’t damage surrounding bolts or equipment
- Ideal for larger bolt sizes that would require more strength to be removed manually
Documents
Helpful resources:
Dimensioned Drawing
Specification Sheet
